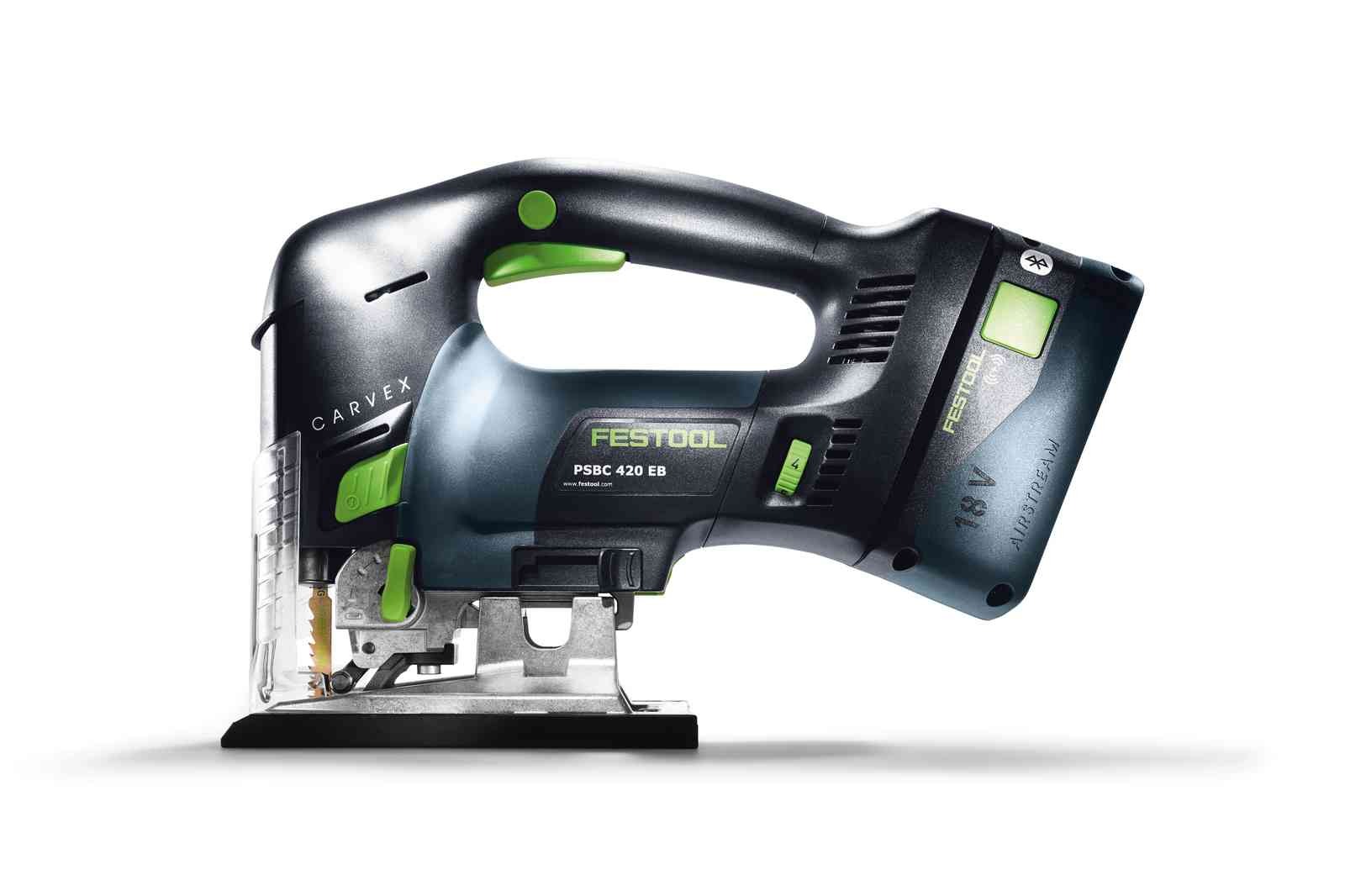

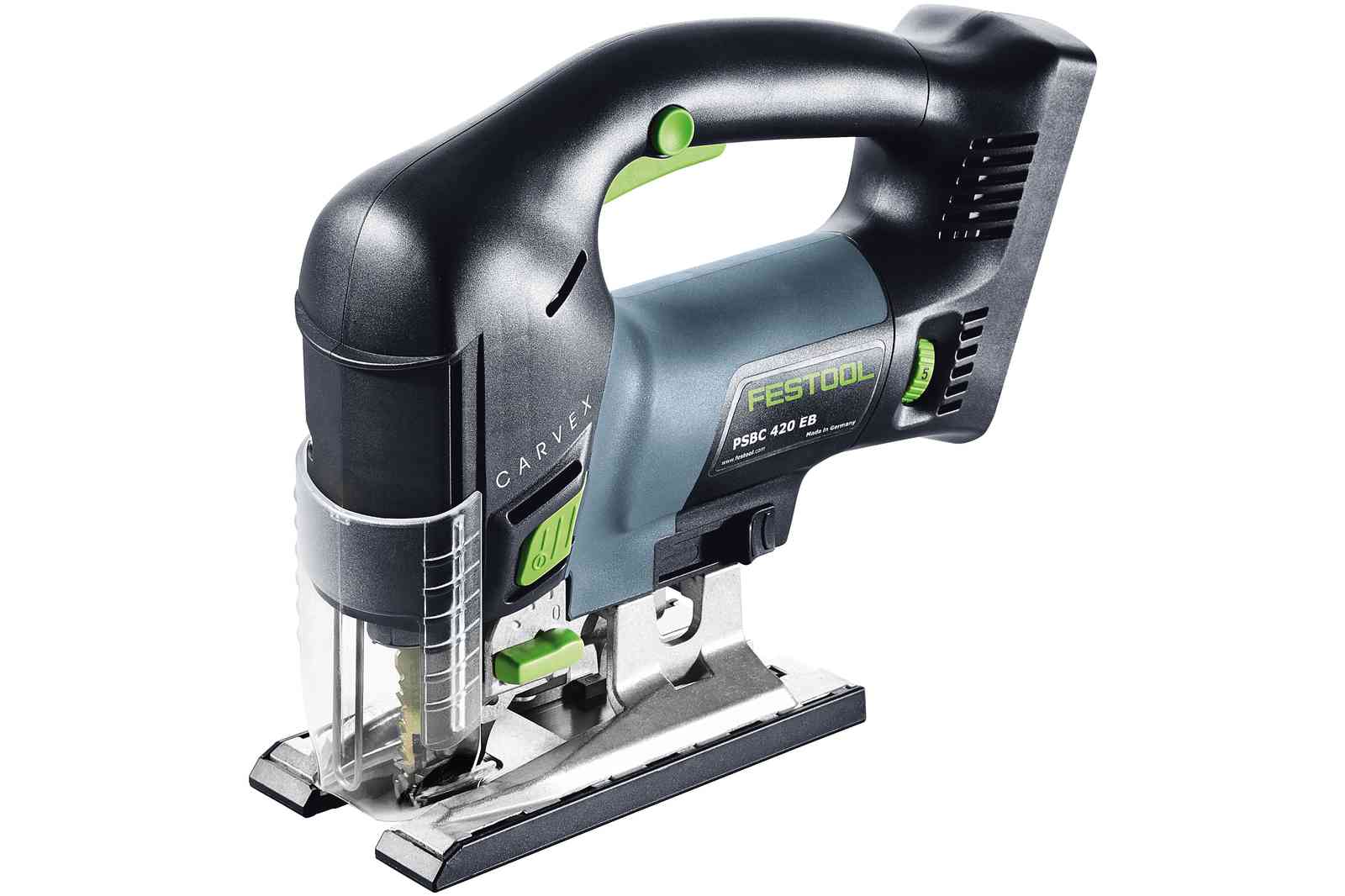

FESTOOL Pendulum Jigsaw CARVEX PSBC 420 EB-Basic

Description

The cordless D-handle version of the CARVEX – Performance similar to a mains-powered tool.

With the FESTOOL Pendulum Jigsaw CARVEX PSBC 420 EB-Basic, even tight curves feel like straight lines. With 3800 strokes per minute, the high-performance, energy-efficient EC-TEC motor gives you powerful, fast sawing progress every time. Always guaranteed: Utmost precision thanks to the specially developed hammer guide and the guide jaws featuring parallel adjustment. They act as a third guide to keep the saw blade on track without compromise. The fact that top performance does not merely relate to sawing results is also shown by the ergonomic design of our cordless pendulum jigsaws, which enables you to work tirelessly for sustained periods.

FEATURES

Excellent behaviour in curves thanks to threefold saw blade guide and rigid lifter rod
Simple handling thanks to the soft grip and ergonomic design
Electronic switch-on/off on both sides, reachable in every grip position
Fast, tool-free changing of tables, base plates and saw blades
Easily visible scribe mark through stroboscope light and powerful extraction
Powerful cutting stroke for rapid working progress
The FESTOOL Pendulum Jigsaw CARVEX PSBC 420 EB-Basic has a low weight to save energy: 2.4 kg

APPLICATIONS

Cut-outs for sinks and kitchen hobs
Trimming work on furniture, and kitchens, for interior fitting
Cutting circles and curves
Coping end strips
Cutting work-pieces to length
Edge notching on beams
Cutting from below

BATTERY & CHARGER NOT INCLUDED.

Additional information

Packaging Weight	3.7 kg
Packaging Dimensions	40 × 30 × 21.5 mm
Battery voltage	18 V
Stroke rate	1 000 – 3 800 min⁻¹
Pendulum cover adjustment in stages	4,00
Cutting depth in wood	120,00 mm
Cutting depth in NF metals	20,00 mm
Cutting depth in steel (soft)	10,00 mm
Li-ion battery capacity	5,20 Ah
Weight with Li-ion	2,40 kg

Product highlights

Achieve ideal results more quickly:

Works as if it had a cable even though it has none. With strong traction and triple saw blade guide for excellent curve handling.

Convenient and safe:

SoftGrip prevents slipping and the splinter guard minimises laborious reworking.

Systems get it done:

One for all – the 5.2 Ah lithium-ion battery packs in the PSC 420 and PSCB 420 can be used in all cordless devices in the same class. And vice versa.

Product details

Optimum handling and operation

With a weight of only 2.4 kg, slim, ergonomic design, non-slip soft-grip coating and on/off switches mounted on both sides (also centrally on stirrup handle version) for right-handed and left-handed operation.

The shape makes the difference

You have the choice: Guide the CARVEX PSC 420 directly to the ergonomic soft-grip barrel grip, while the CARVEX PSBC 420 has a handy top handle. You decide based on your preferences – it makes no difference to the power, comfort or ergonomics of the tool.

Perfect combination of power and flexibility

What do you get when you cross powerful torque with effortless handling around bends and corners? Pure enthusiasm for the CARVEX. Also with innovative battery technology that provides even greater flexibility. It matches the high cutting performance achieved with cabled versions, is long-lasting and measurably better than other cordless saws.

Powerful

3800 strokes per minute generate outstanding power – assisted by an EC-TEC motor with energy efficiency that guarantees lasting power even for the cordless versions.

More power, fewer energy requirements

The brushless EC-TEC motor and the newly developed gearbox concept transfer more than 80% of the power generated to the saw blade. For rapid sawing progress in any material.

Precision cutting along the scribe mark

The stroboscopic light brings the saw blade to a visible stop, while dust extraction and the blowing function of the CARVEX keep the view of the scribe mark free.

Perfectly straight, accurate cuts

The lifting rod guide and parallel adjustable carbide jaws act as a third saw blade guide to ensure straight precision cuts.

Accurate circular cut-outs

Even the smallest circles (radii of 34 mm to 1.5 m) are easy to manufacture with the core maker and compatible jigsaw blade, e.g. the S 75/4 FSG.

Guaranteed precision

Mitre cuts and undercuts of 0 to 45° are made with the quick-change angle table.

Changing saw blades without using tools

Adapting to the working material is worth it because the results are more accurate and the saw blades last much longer. The Festool system is therefore designed to reduce set-up times, e.g. with single-handed saw blade changing.

Sophisticated design right down to the smallest detail

The lowerable dust-extraction attachment for the CARVEX PS 420 jigsaws improves suction power and therefore your view as you cut.

Items included

Without battery pack.
Without charger.
2x saw blades (1 x fine tooth blade/1 x universal blade).
Splinter-guard.
in SYSTAINER SYS 2 T-LOC.

Product Warranty

All Festool tools carry a standard 1-year warranty. Receive an additional 2-year warranty upon tool Registration.

If you would like to return a product for a warranty claim or repair (transport for the account of customer) please email us (info@topdogtoolshop.co.za) and include your order number and details of the issues you have experienced.

Once we have this confirmation we can then arrange a drop off or collection. Please note that warranty claims are not decided on by Top Dog Tool Shop, this decision sits solely with the manufacturer.

Reviews

There are no reviews yet.

Be the first to review “FESTOOL | Cordless Pendulum Jigsaw PSBC 420 EB Li-BASIC CARVEX | 576530”

You must be logged in to post a review.

EC-TEC MOTOR

FESTOOL | Cordless Pendulum Jigsaw PSBC 420 EB Li-BASIC CARVEX | 576530

18V | 3800 RPM | 120 MM | 1.80 KG

SKU FES576530
