MAXIMUM STABILITY

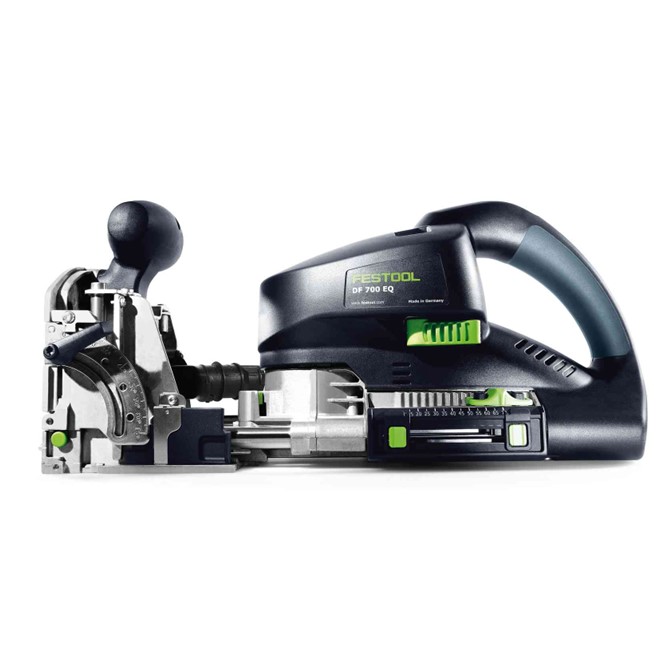

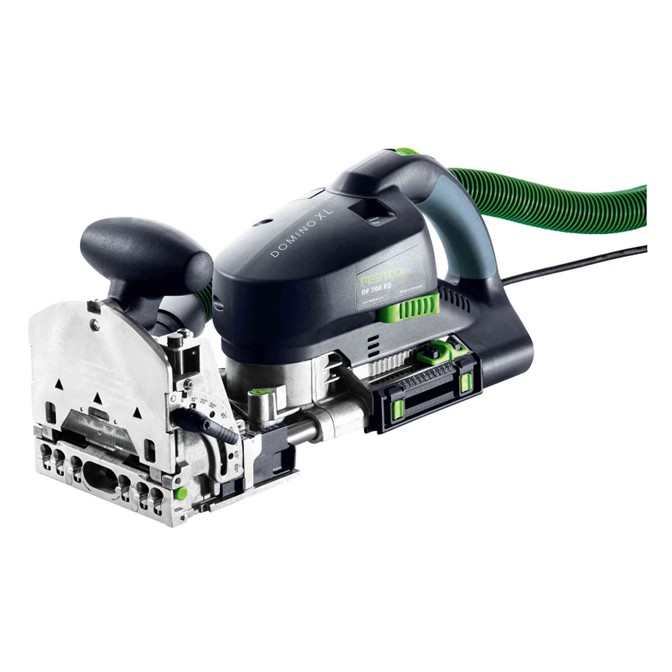

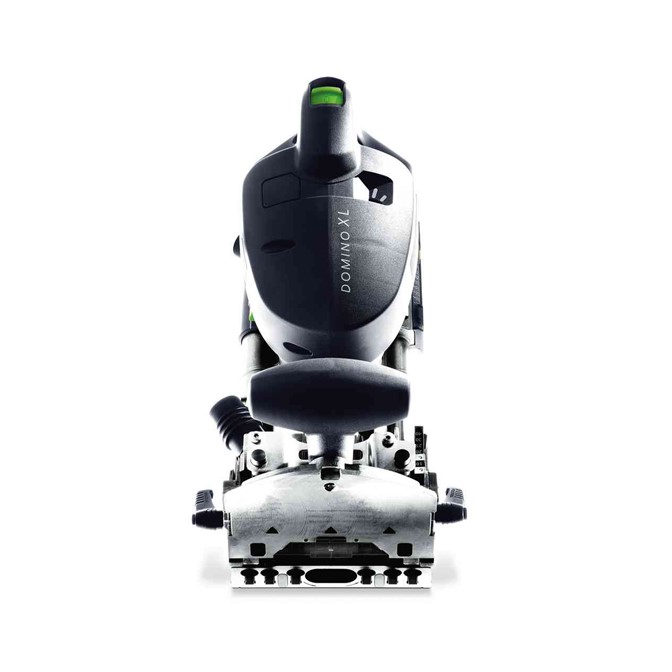

FESTOOL Joining Machine DOMINO DF 700 EQ-PLUS | 576426

720W | 8 / 10 / 12 / 14 MM DOMINO SLOT CUTTER

R38,520.00

PAY IT OFF

Interest Free | 20% Deposit | 4 Months Max

SKU FES576426

Comes to the workpiece and not vice versa: DOMINO XL. Quick, simple, precise and extremely stable – with measurably shorter tooling times and up to 50% time-saving in comparison to stationary machines. The DOMINO XL is therefore ideally suited for furniture and door construction and solid wood joints.

Terms & Conditions

  1. This offer is valid for 90 days from date of invoice
  2. Product/s returned to Top Dog Tool Shop must be unused and in brand new condition
  3. Product/s returned to Top Dog Tool Shop must be in original packaging & all original contents must be in the box
  4. Product/s returned to Top Dog Tool Shop will be at the purchaser/owners expense
  5. Product/s will be inspected on arrival at Top Dog Tool Shop. Only product/s which meet the above requirements will be refunded.
  6. Product/s which do not meet the above criteria will be returned to the owner at the owners expense (courier costs). Top Dog Tool Shop will not accept products which do not meet the above requirements
  7. Refund will be in the form of an EFT or Top Dog Tool Shop Voucher. No cash refund option available
  8. Refund will take place within 48 hours of approval of the return.
  9. If the plug has been changed on the tool or charger, the tool cannot be returned
  10. This offer is only valid for product/s purchased from Top Dog Tool Shop
  11. Not applicable to special order/imported products

We offer free nationwide delivery for all orders over R2000.

Any order under R2000 will be charged R200 for delivery

OZOW – Instant EFT: lightning-fast bank-to-bank payments.

Peach Payments – Checkout via Credit/Debit Card or Mobicred.

Bank Transfer – Manually transfer funds into our account.

LayUp – Installment-based purchase, without relying on credit. Lay-By for up to 4 months. More info here

Currently Unavailable. Add to wishlist to be notified

REQUEST A QUOTE
Add to wishlist

Description



Extra mobile. Extra stable.

The FESTOOL Joining Machine DOMINO DF 700 EQ-PLUS | 576426 is therefore ideally suited for furniture and door construction and solid wood joints.



FEATURES
  • Quick, simple, precise and extremely stable – with measurably shorter tooling times and up to 50% time-saving in comparison to stationary machines.
  • Maximum stability of joints up to a DOMINO size of 14 x 140 mm.
  • Patented routing principle unique to hand-held machines for accurate work with no kickbacks.
  • Saves more time compared to a stationary machine.
  • Stops that are quick and easy to adjust, for accurate results.
  • System accessories compatible with both DOMINO jointers.



PRODUCT HIGHLIGHTS

Achieve ideal results more quickly:
Time savings of up to 50% in comparison with stationary machines on solid joints up to a dowel size of 14 x 140 mm.

Convenient and safe:
Unique patented pendulum routing principle enables smooth, accurate work as well as holes without any scorch marks.

Systems get it done:
DOMINO, cutter, dowel up to 14 x 140 mm, removable corner and surface connectors and compatible system accessories for virtually unlimited jointing possibilities.



MAIN APPLICATIONS
  • Solid wood furniture in frame and tunnel design.

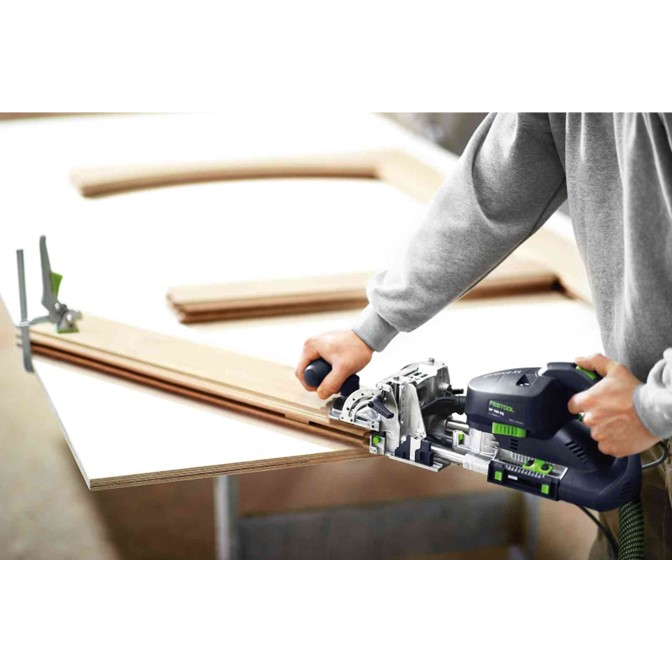

  • Frame construction of house doors and interior doors.
  • Manufacture of tables and chairs.
  • Creation of stable mitre joints.
  • Folded and profiled door frames in furniture construction.
  • Connection of wide cornices (e.g. plates).
  • Frame and stand constructions in non-supported timber structure (exterior and interior area).



Additional information

Power consumption

720 W
Idle engine speed

21 000 min⁻¹
Depth stop for routing depth

15 – 70 mm
Max. routing depth

70.00 mm
DOMINO slot cutter dia.

8, 10, 12, 14 mm
Routing height adjustment

10 – 50 mm
Mitre routing

0 – 90°
Dust extraction connection diameter

27 mm
Cable length

4.00 m
Product weight

5.20 kg
Drive type

Mains
Routing: Uncertainty (vibration) K

1.50 m/s²
Routing: Uncertainty (noise) K

3.00 dB
Routing: Total vibration average, Ah

2.50 m/s²
Routing: Standards series EN

60745-2-19
Routing: A-weighted sound pressure level, LpA

83.00 dB(A)
Routing: A-weighted sound power level, LWA

94.00 dB(A)

Product Details

Stable frame joints

The DOMINO XL comes to the workpiece – and not vice versa. Quick, precise, extremely stable and thus ideal for furniture and door construction.

More flexible and up to 50% quicker than conventional stationary machines

Simple marking. Significantly shorter machine set-up times. No intensive and time-consuming material transport. Considerable reduction in time spent cleaning.

Pendulum cutting principle

Unique among manual machines and patented by Festool: The DOMINO DF 500 jointer routing motion. The simultaneous rotating and pendulum movement of the router allows smooth working and holes without scorch marks. Thanks to the pendulum motion, the routers do not overheat, leading to an extremely long tool life.

Long-hole principle

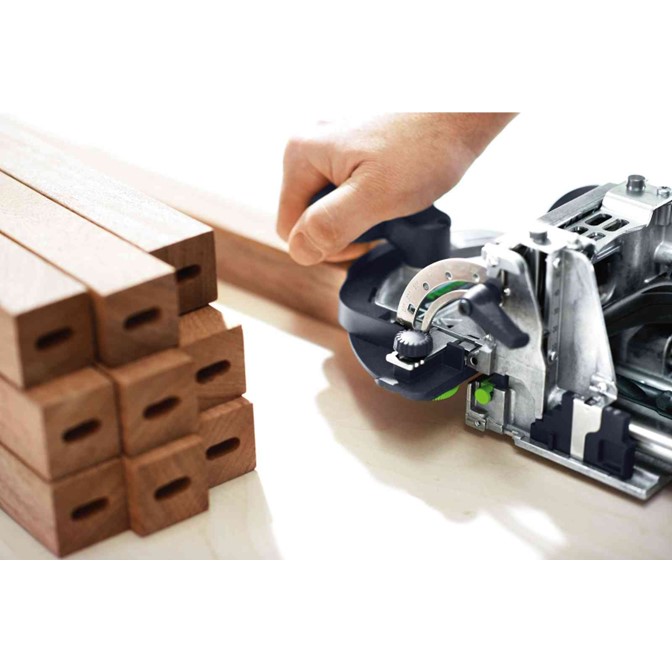

Custom-fit alignment: The first DOMINO is positioned in a precision cut elongated hole, the next DOMINOs are inserted into wider elongated holes with play so that the joint can be aligned effortlessly. The result is a stable joint, protected against rotation from the first DOMINO.

Innovative stop system

Repeat dowel adjustments without time-consuming marking: The DF 700 can be quickly and precisely positioned via the integrated impact pins right from a reference edge. This is also possible for dowel groups.

Maximum stability

The special shape of the DOMINO in combination with expanding glue pockets and lateral longitudinal grooves gives the dowels a secure grip. You can use the Festool DOMINO XL DF 700 joining machine to effortlessly process dowels up to a dowel size of 14 x 140 mm. Also available as individually adjustable rods.

Now extremely flexible, too

The new DOMINO corner and flat connectors: Connect even quicker and release it again as necessary.

Save time when using the same cutting depth over and over again

With the variable routing depth setting of 15-70 mm and two freely selectable “flag” positions.

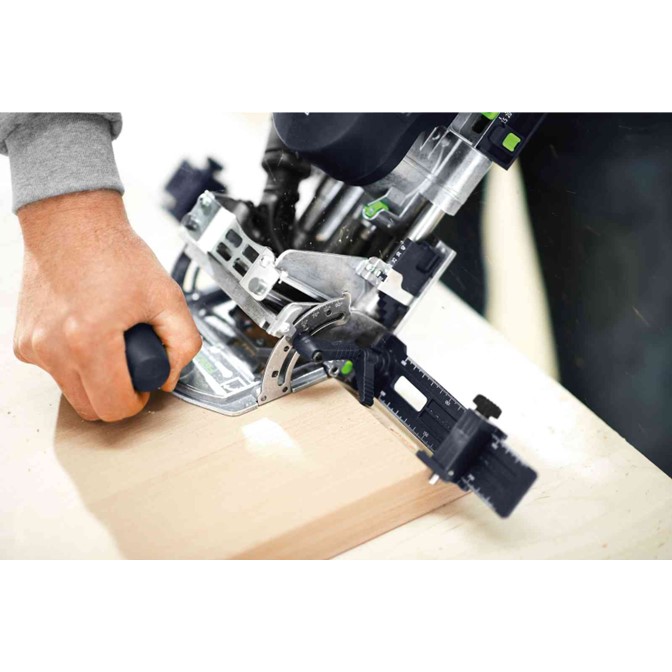

Routing height and angle setting

Time-saving and precise adjustment of the routing height and angle: For precise mitre routing and processing various material thicknesses. Using presettings or infinite routing angle adjustment.

100% rotation-proof

Right from ,the first DOMINO the joints are completely secured against rotation – without aligning the workpieces.

For inside and out

DOMINOs are available in two materials: Beech for interior applications and weatherproof, insect- and mould-resistant sipo DOMINOs for outdoor applications.

Environmentally friendly

All DOMINOs originate from sustainable forest management. The beech dowels are certified by the Pan European Forest Council (PEFC).

Working with extraction

Larger quantities of chips are created when working with the DOMINO DF 500 jointers. To improve chip removal out of the routed hole during routing, as well as to protect your health, we recommend always working with a dust extraction system.

DOMINO system accessories

Accurate joining of round and square timbers, as well as for repeat hole spacing too: Compatible as a system accessory for the DOMINO XL and DOMINO DF 500.

Scope Of Delivery

  • DOMINO cutter D 12.
  • Additional stop.
  • Empty dowel box.
  • Open ended spanner, WAF 12.
  • Systainer SYS3 M 437.

Product Warranty

All Festool tools carry a 2 year warranty. You can get an additional 1 year warranty after tool registration.

Register your product here or read more about Festool warranties here.
