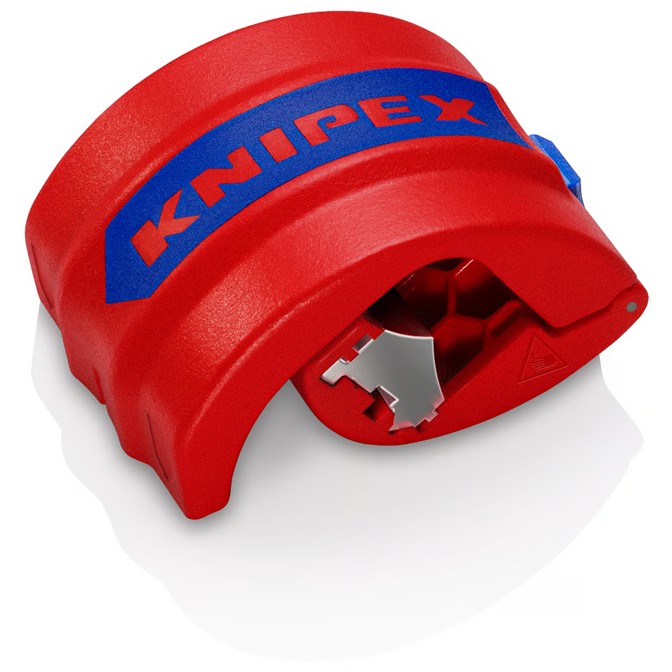

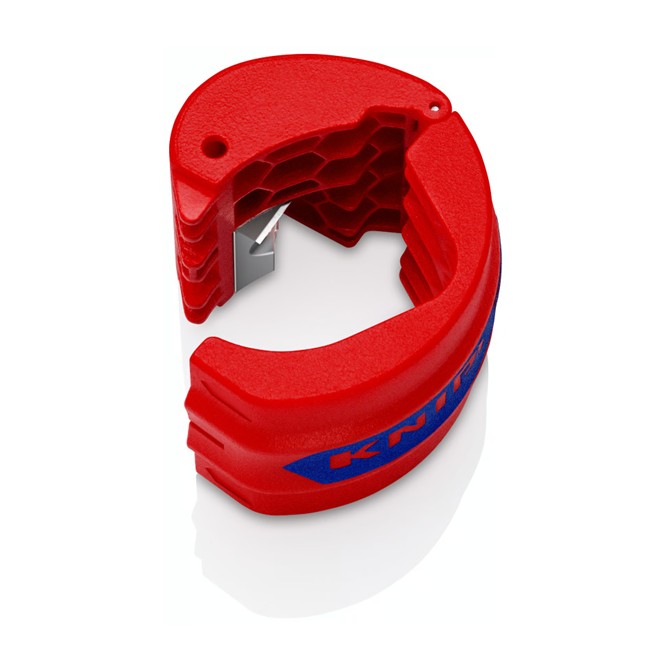

KNIPEX BiX® PVC Pipe Cutter | 20 – 50mm

Description

Cuts pipes quickly and without shavings in next to no time.

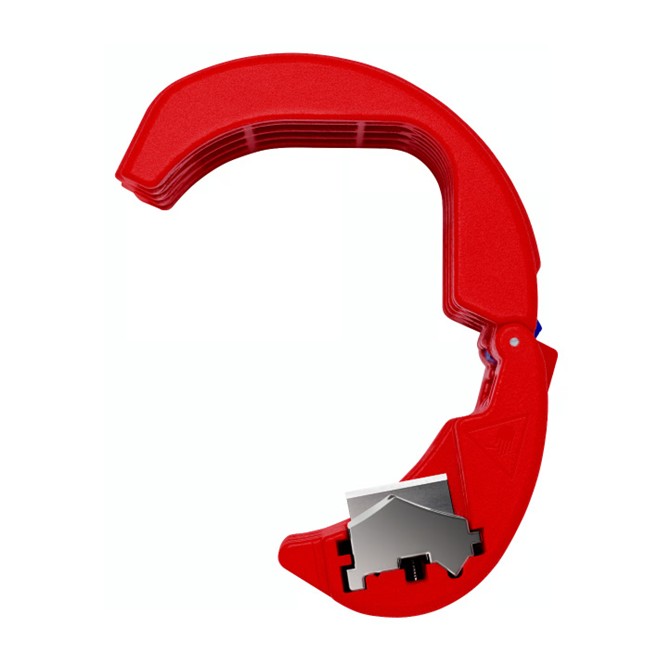

The unique all-rounder KNIPEX BiX® PVC Pipe Cutter 20 – 50mm with rotating blade unit can separate both Unreinforced plastic pipes (for example , empty pipes for electrical or HT pipes for plumbing) as well as standard-compliant drip sleeves and sealing sleeves. It is flexible: The BiX adapts variably to pipe/sleeve diameters between 20 and 50 mm and cuts through wall thicknesses of up to 2.4 mm. In addition, weighing just 108 g and measuring just 72 mm in length, the small Knipex BiX is compact and ergonomic enough to fit comfortably in the palm of your hand and to allow you to work in confined working conditions.

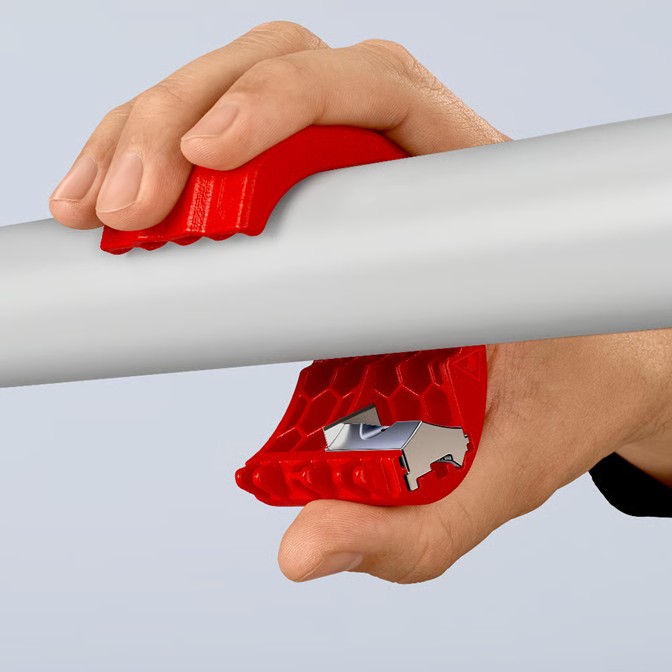

The cutting tool is made of sturdy, reinforced plastic, the blade unit is made of die-cast zinc, and the blades (made in Solingen) are made of special surgical stainless steel. Knipex BiX cuts pipes quickly – markings help you find the exact cutting position. By applying slight pressure with the first turn, a guide line is created for the cutter to follow. A further turn with a slightly higher pressure is often enough to separate the material.

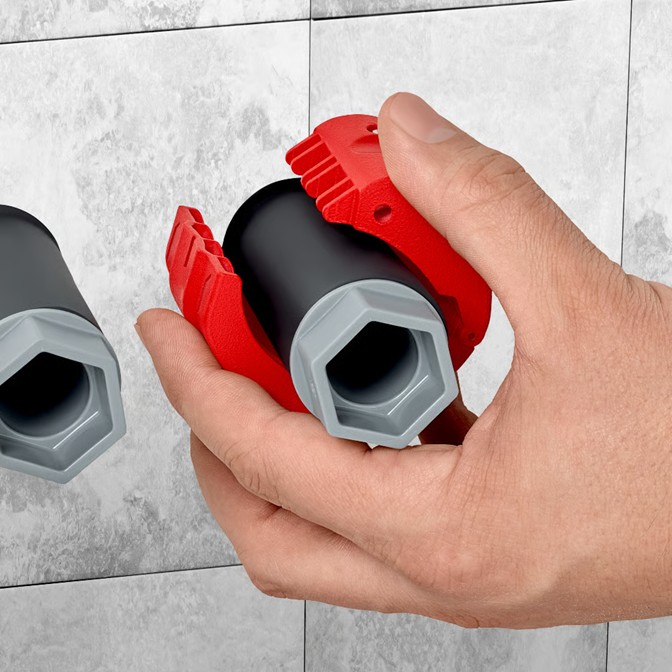

The cut-off section remains in the tool and does not fall. In addition, there are no shavings. The Knipex BiX also works as a cutting tool for drip sleeves and sealing sleeves. It cuts the sleeves quickly and easily – in accordance with DIN 18534 at a distance of approx. 2-3 mm from the wall. Already standard in Germany, sealing sleeves help keep walls dry: They prevent water from penetrating the wall and conduct moisture away from the wall due to possible leaks in water connections.

FEATURES

• Can cut high-temperature plastic drain pipes and electrical conduits in next to no time.
• Can be used to cut sealing sleeves during final assembly – close to the wall, standard-compliant.
• Cuts unreinforced plastic pipes from Ø 20 to 50 mm with a wall thickness of up to 2.4 mm.
• Cuts soft plastic pipes and those with foam cores from Ø 20 to 50 mm with a wall thickness of up to 3.5 mm.
• Cuts sealing sleeves approx. 2-3 mm from the wall.
• Cuts pipes quickly, cleanly and without shavings.
• Small and light: 72 mm long and a weight of 108 g.
• Flexible cutting results for HT and plastic pipes as well as drip/sealing sleeves: Ø 20 – 50 mm.
• Cuts through thick pipes: Up to 2.4 mm wall thickness.
• Cuts, drip and sealing sleeves: at a distance of approx. 2-3 mm from the wall.
• Robust: Tool made of sturdy, reinforced plastic with a blade unit made of die-cast zinc.
• Sharp: Blades made of special surgical stainless steel – Made in Solingen (2 spare blades included).

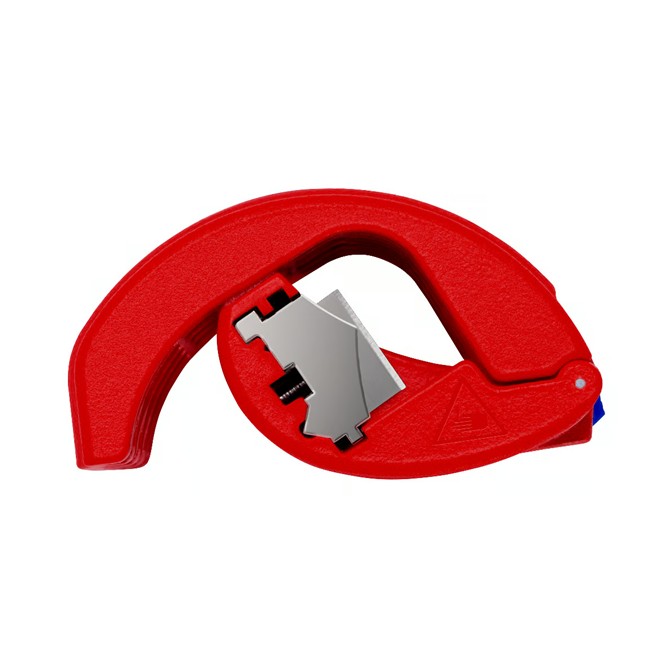

• Rotatable knife block for cutting plastic pipes (blade in the middle) and sealing sleeves (blade outside).

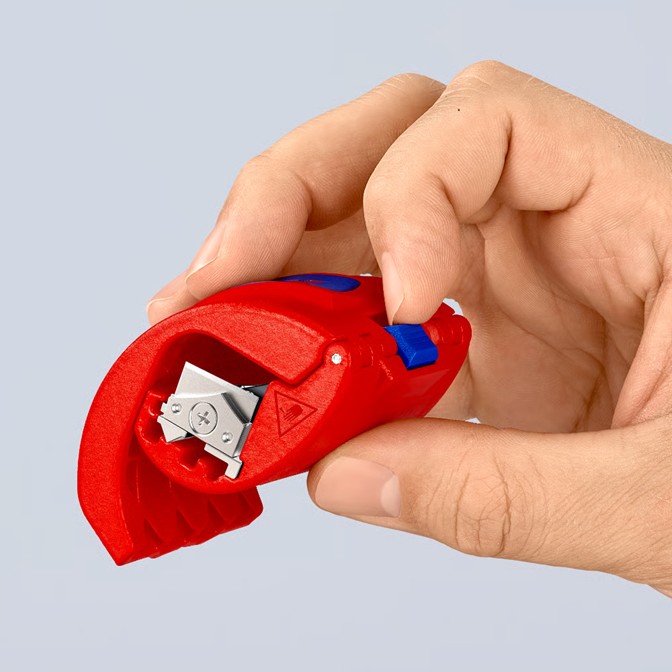

• With a locking mechanism for safe transport.

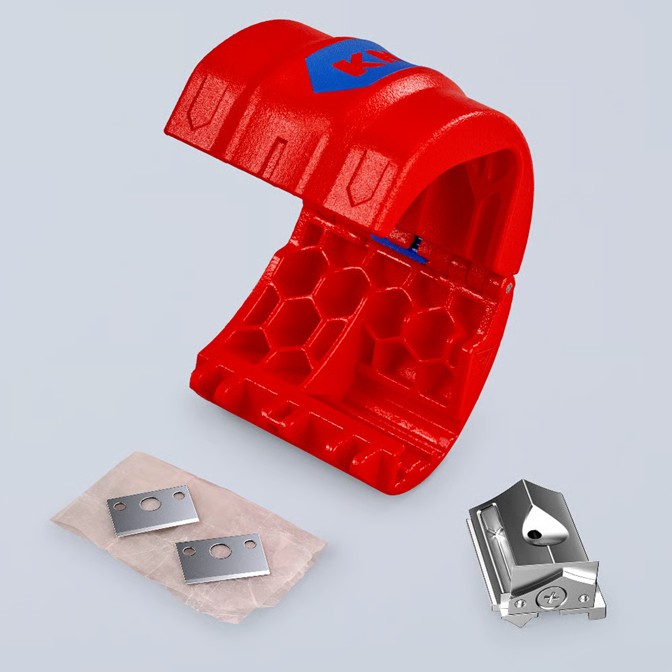

• Two spare blades are integrated into the tool.
