Description
Optimised Cuts.

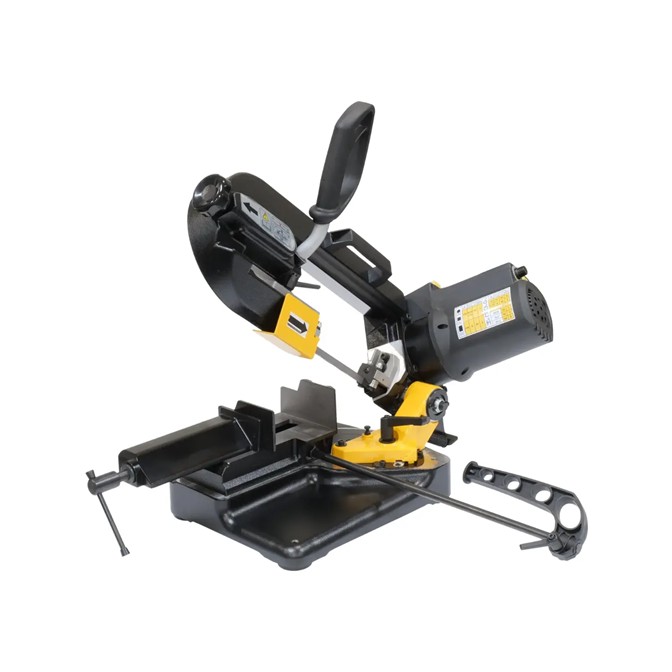

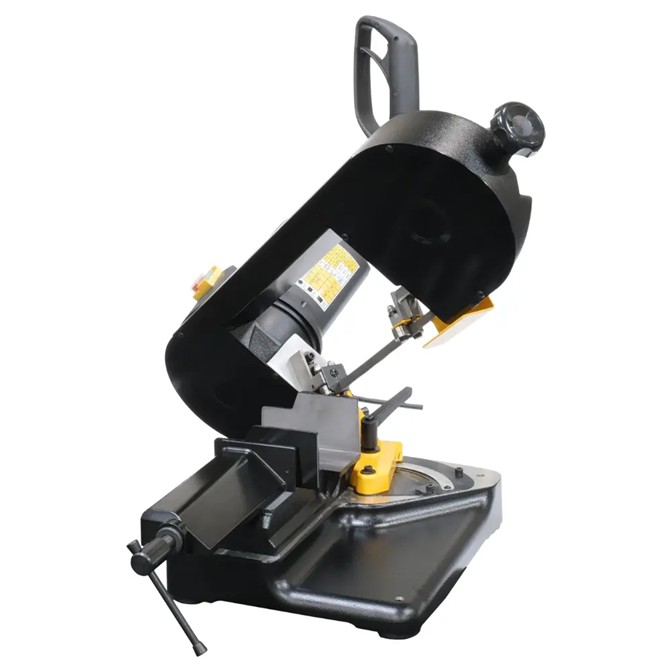

The LAGUNA Horizontal Metal Cutting Bandsaw B5 is a compact, professional-grade metal cutting saw built for shop floors that demand precision and reliability. With a 1HP motor and variable blade speed from 82 to 262 FPM, the B:5 handles carbon steel, stainless steel, copper alloys, cast iron, and aluminium with consistent, accurate results.
FEATURES
- 1HP motor running on standard 220V power — no special wiring required.
- Variable blade speed dial (82–262 FPM) for optimising cuts across different metals.
- Thermal protector and CE-rated electrical system for operator safety.
- 90° capacity: 4.92″ round bar, 5.12″ × 4.92″ rectangular stock.
- 45° capacity: 2.99″ round and rectangular stock.
- 60° capacity: 1.97″ round and rectangular stock.

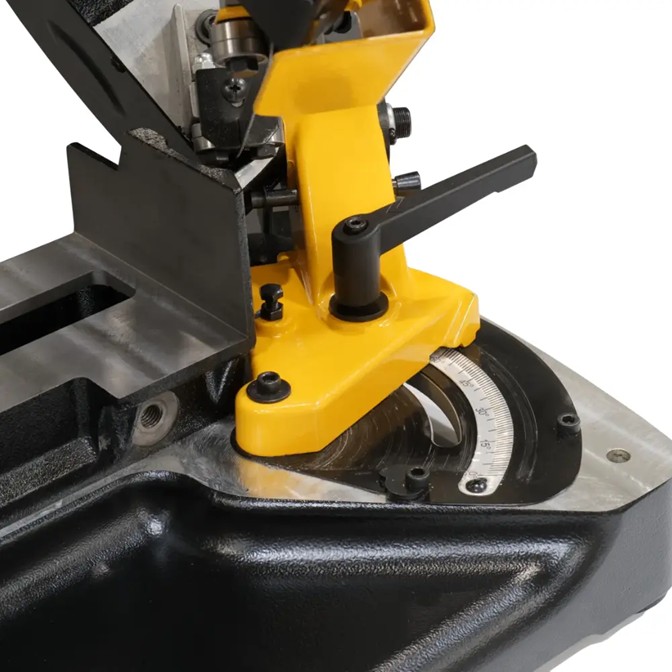

- Cutting angle adjustable from 0° to 60° via locking handle.

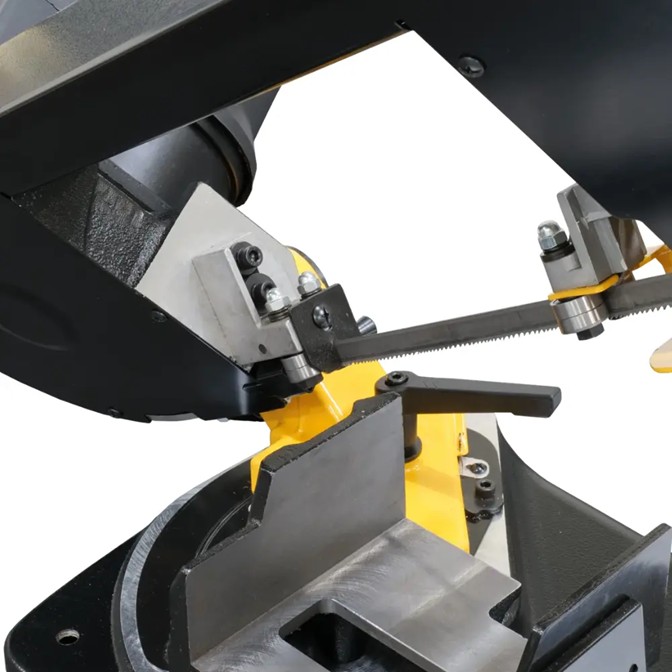

- Blade guide arm adjusts to minimize deflection close to the workpiece.
- Integrated vise with swivel jaw for 90° and angled cuts.
- Vise jaw auto-adjusts to any stationary jaw position.
- Work stop rod assembly included for repeatable length cuts.
- Blade size: 0.51 × 0.026 × 56.69 inches.
- Aluminum bow-saw frame keeps weight low while maintaining blade stability.
- Single-knob blade tensioning system with 1/4″ deflection target.
- Blade tension should be checked every 8 operating hours.
- Assembled dimensions: 26.4 × 12.2 × 18.9 inches (670 × 310 × 480 mm).
- Four rubber feet with mounting holes for secure bench attachment.
- Two mounting methods: lag screw to table surface or hex bolt through table.
- Adjustable handle with set screw for ergonomic positioning.
- Bottom stop screw prevents over-travel during cutting.
- Noise level approximately 60 dB(A).
