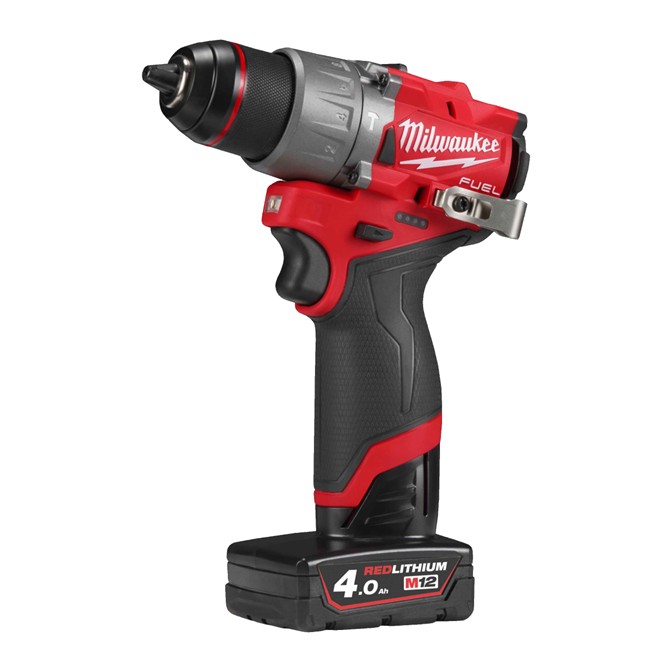

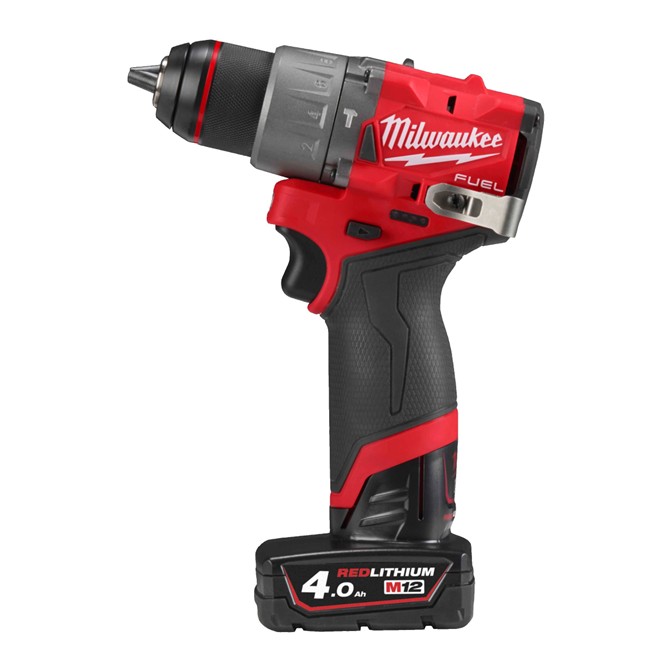

MILWAUKEE M12 FUEL Sub Compact Percussion Drill Set

Description

45 Nm Power. 152mm Compact Design.

The MILWAUKEE M12 FUEL Sub Compact Percussion Drill Set M12 FPD2-402X combines a compact 152 mm design with 45 Nm of torque for powerful drilling and fastening in tight spaces. The heavy-duty 13 mm metal chuck allows for quick bit changes and secure bit retention. The mechanical clutch provides 13 torque settings plus dedicated locked-clutch settings for drilling and hammer drilling.

FEATURES

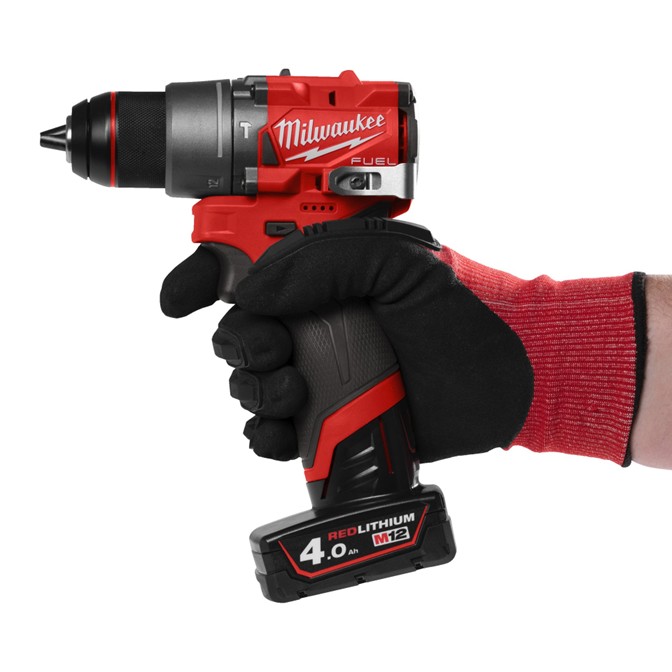

The compact 152 mm design provides access into tight spaces.
Delivers up to 45 Nm of torque.

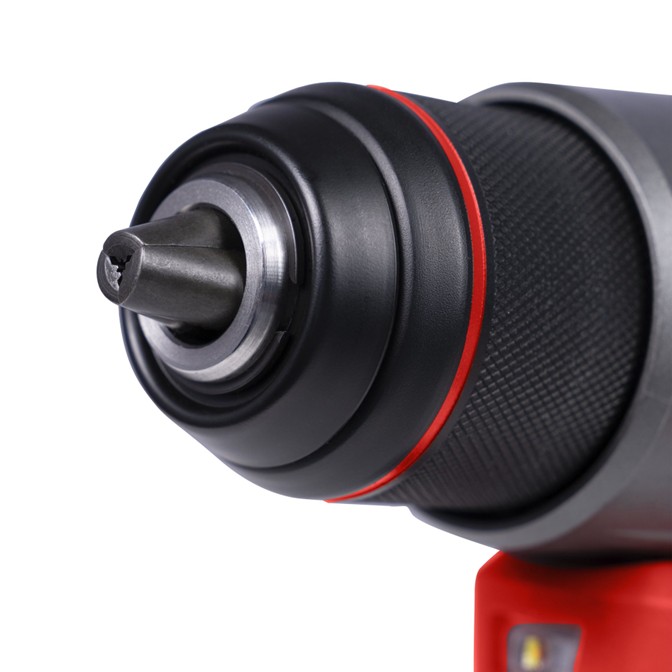

Features a heavy-duty 13 mm metal chuck for quick bit changes and bit retention.
The mechanical clutch provides 13 torque settings.
Includes one locked-clutch drilling setting and one locked-clutch hammer setting.
An onboard fuel gauge displays the remaining battery charge.

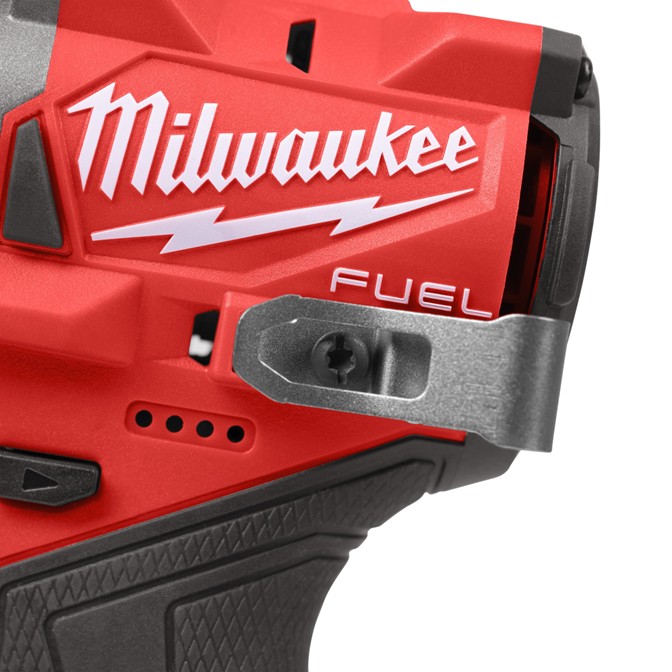

A metal belt clip provides convenient tool carrying.

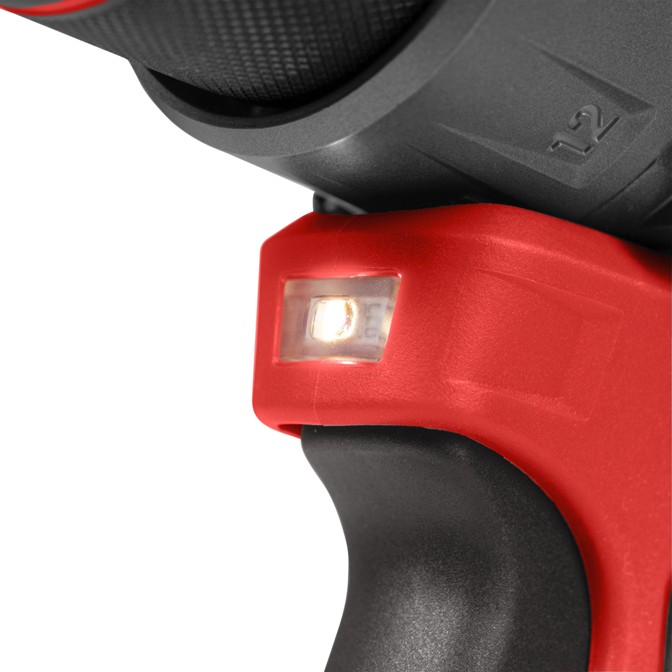

An integrated LED light improves visibility around the work area.
POWERSTATE™ brushless motor delivers power and performance as part of the FUEL™ platform.
REDLINK PLUS™ electronic intelligence works with the POWERSTATE™ motor and REDLITHIUM™ battery pack.
Compatible with all MILWAUKEE® M12™ batteries.

Additional information

Article Number	4933479869
Model Number	M12 FPD2-402X
Voltage	12V
Battery included	M12 B4
Charger included	C12 C
Battery pack capacity	4.0 Ah
Chuck capacity	13 mm
Max Drilling Capacity	Steel – 13 mm Wood – 13 mm Masonry – 35 mm
Wood screws to	8 mm
Max. percussion rate	0 – 22,500 bpm
Max. torque	45 Nm
No load speed	Gear 1 – 0 – 450 rpm Gear 2 – 0 – 1550 rpm

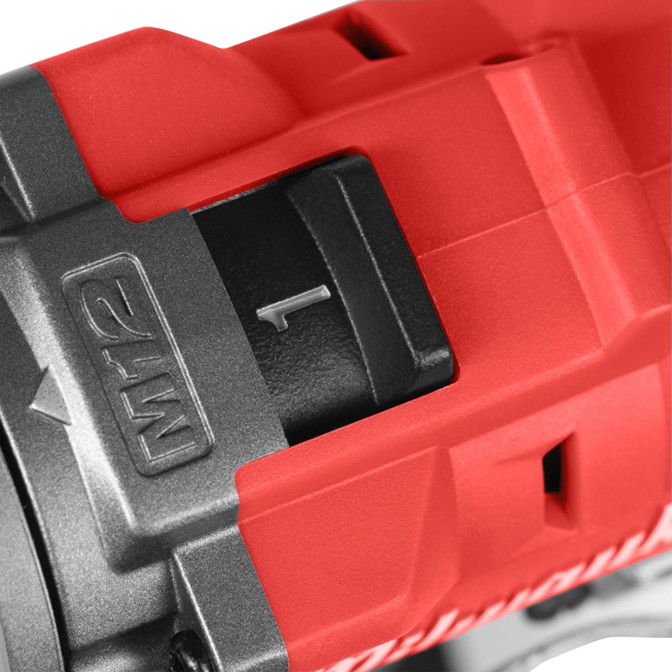

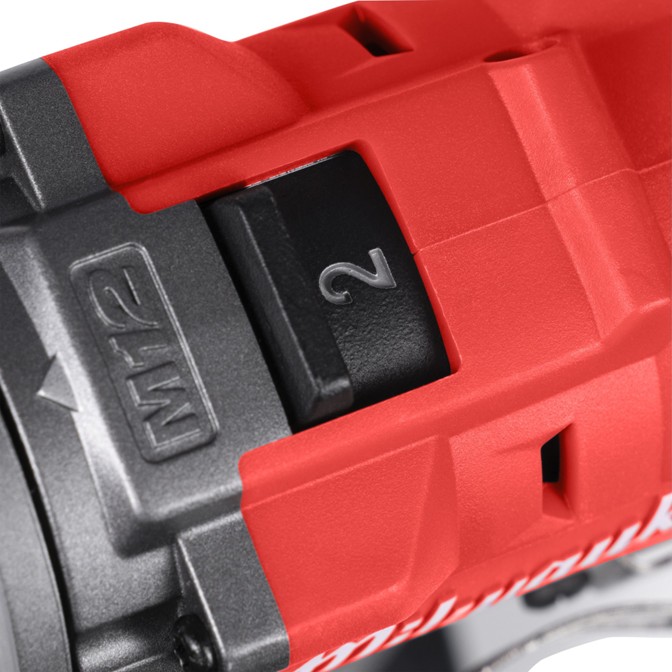

Speed settings	2
Kit included	2 x M12 B4 Battery packs, C12 C Charger, HD Box
Standard equipment	Belt clip and bit holder
Supplied in	HD Box
Weight with battery pack	1.4 kg (M12 B4)
Noise	Sound power level (Lwa)(dB(A)) – 100 Sound power level uncertainty (dB(A)) – 3 Sound pressure level (Lpa)(dB(A)) – 89 Sound pressure level uncertainty (dB(A)) – 3
Vibration	Vibration drilling into concrete [m, s²] – 15.73 Vibration drilling into concrete uncertainty [m, s²] – 1.5 Vibration drilling into Metal [m, s²] – 1.92 Vibration drilling into metal uncertainty [m, s²] – 1.5 Vibration screw driving (m/s²) – 0.86 Vibration screw driving uncertainty (m/s²) – 1.5
EAN	4058546376635

Scope of Delivery

M12 FUEL™ sub compact percussion drill.

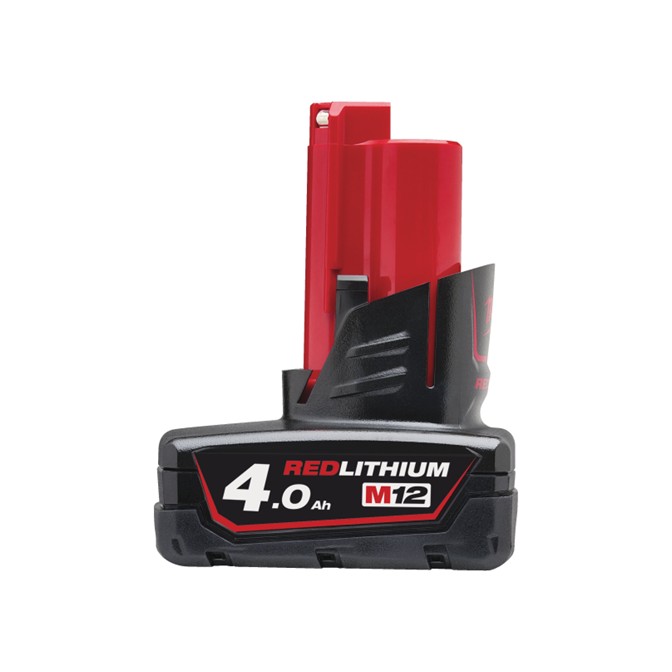

M12™ 4.0 Ah battery.

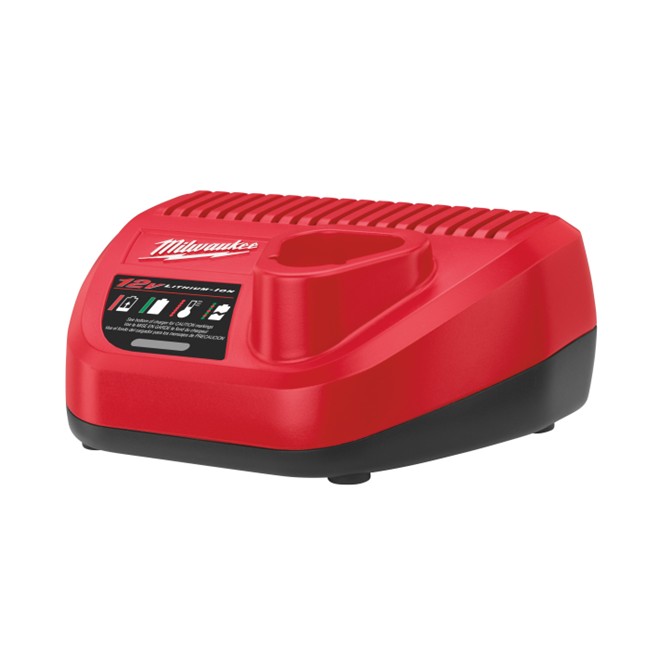

M12™ charger.

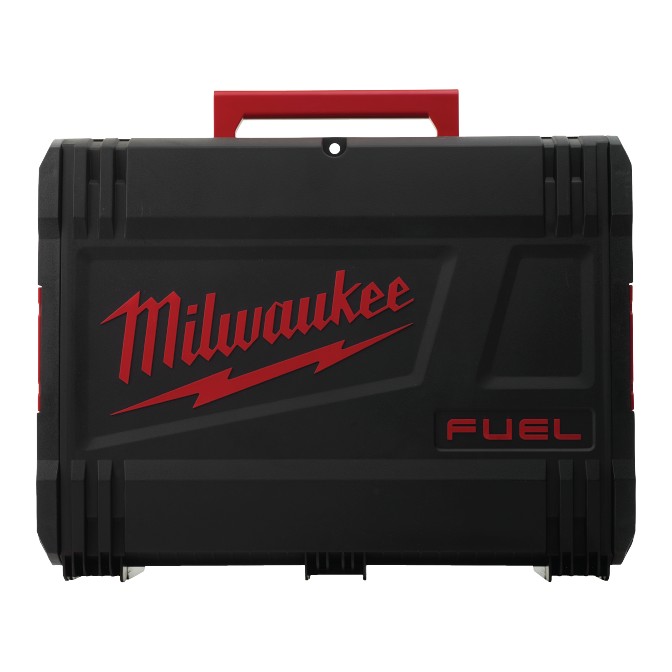

HD Box.

Product Warranty

Milwaukee Tools carry a 1 year warranty against manufacture default. Top Dog Tool Shop is here to support on all your after-sales needs. Should a warranty claim occur, Top Dog Tool Shop will facilitate the claim but the approval or non-approval there-of is fully in the discretion of the Importer/Manufacturer.
