PRO-TECH | 3 Wing Cutter 1/8′ & 3/8′ Quarter Round 1/4′ Bead

Description

Tungsten carbide – 3 wing.

The Pro-Tech 3 Wing Cutter KP10 is designed to be used with a stationary spindle moulder equipped with either a 3/4′ or 1/2′ spindle shaft.

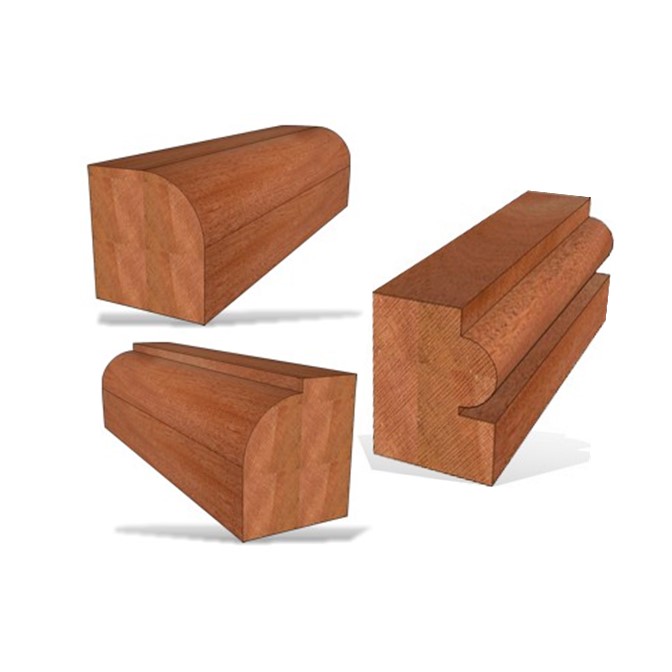

The cutter can be configured to cut quarter rounds and beads KP800020 – 3/4′ – 1/2′ spacer rings

IMPORTANT

• Make sure the spindle moulder has a table opening of at least Ø 140mm.
• Designed for spindle moulders equipped with either a 1/2′ or 3/4′ spindle shaft.

SPINDLE SAFETY

• Spindle cutters pose a significant risk of injury and demand your utmost attention and respect.
• Maintain a safe distance: Use push sticks or a push block to position your hands away from the spindle cutter.
• Never climb-cut, as this can lead to loss of control. Always feed the stock against the rotation of the cutter (see illustration).
• Additionally, avoid moulding small stock, as it can be difficult to manage. Instead, mould a larger piece and cut it to size afterwards.
• Avoid moulding small stock. Instead, mould a larger piece and cut it to size afterwards.
• Always use a guard. If the fence didn’t come with a guard, make your own.
• Never start the spindle with the cutter in contact with the material.
• Don’t force the cutter or overload the machine. Excessive heat is an enemy.
• The spindle moulder needs to have a power feeder or feather boards fitted to apply sufficient feeding pressure.
• Fit the cutter on the lowest point of the spindle shaft.
• Be sober and not under the influence of medicine that causes a lack of concentration.
• Make sure the spacer rings on the spindle shaft are locked in place correctly.
• Tidy up your workshop to ensure the ability to move freely with enough room around the spindle moulder.
