FIND HIDDEN PROBLEMS

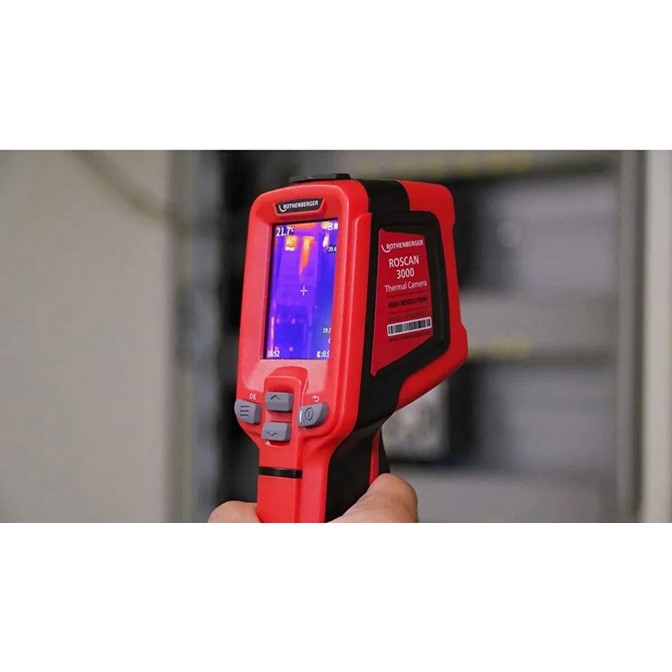

ROTHENBERGER ROSCAN 3000 Thermal Imaging Camera

45 MK | 25 HZ | 3.75 MRAD

R23,000.00

PAY IT OFF

Interest Free | 20% Deposit | 4 Months Max

SKU ROT1100011

ROSCAN 3000 Thermal Camera is an easy-to-use thermal imaging camera for mechanical, electrical, building and HVAC/R applications. Find hidden problems, take accurate temperature readings, and confirm repairs easily , thanks to the 256×192 IR Detector.

Terms & Conditions

  1. This offer is valid for 90 days from date of invoice
  2. Product/s returned to Top Dog Tool Shop must be unused and in brand new condition
  3. Product/s returned to Top Dog Tool Shop must be in original packaging & all original contents must be in the box
  4. Product/s returned to Top Dog Tool Shop will be at the purchaser/owners expense
  5. Product/s will be inspected on arrival at Top Dog Tool Shop. Only product/s which meet the above requirements will be refunded.
  6. Product/s which do not meet the above criteria will be returned to the owner at the owners expense (courier costs). Top Dog Tool Shop will not accept products which do not meet the above requirements
  7. Refund will be in the form of an EFT or Top Dog Tool Shop Voucher. No cash refund option available
  8. Refund will take place within 48 hours of approval of the return.
  9. If the plug has been changed on the tool or charger, the tool cannot be returned
  10. This offer is only valid for product/s purchased from Top Dog Tool Shop
  11. Not applicable to special order/imported products

We offer free nationwide delivery for all orders over R2000.

Any order under R2000 will be charged R200 for delivery

OZOW – Instant EFT: lightning-fast bank-to-bank payments.

Peach Payments – Checkout via Credit/Debit Card or Mobicred.

Bank Transfer – Manually transfer funds into our account.

LayUp – Installment-based purchase, without relying on credit. Lay-By for up to 4 months. More info here

Currently Unavailable. Add to wishlist to be notified

Description

ROTHENBERGER R600 VARIOCLEAN 18V Drain Cleaner Set

ROTHENBERGER R600 VARIOCLEAN 18V Drain Cleaner Set



Water leak detection thermal camera.

The ROTHENBERGER ROSCAN 3000 Thermal Imaging Camera is an easy-to-use thermal imaging camera for mechanical, electrical, building and HVAC/R applications.

ROTHENBERGER ROSCAN 3000 Thermal Imaging Camera

Find hidden problems, take accurate temperature readings, and confirm repairs easily , thanks to the 256×192 IR Detector.

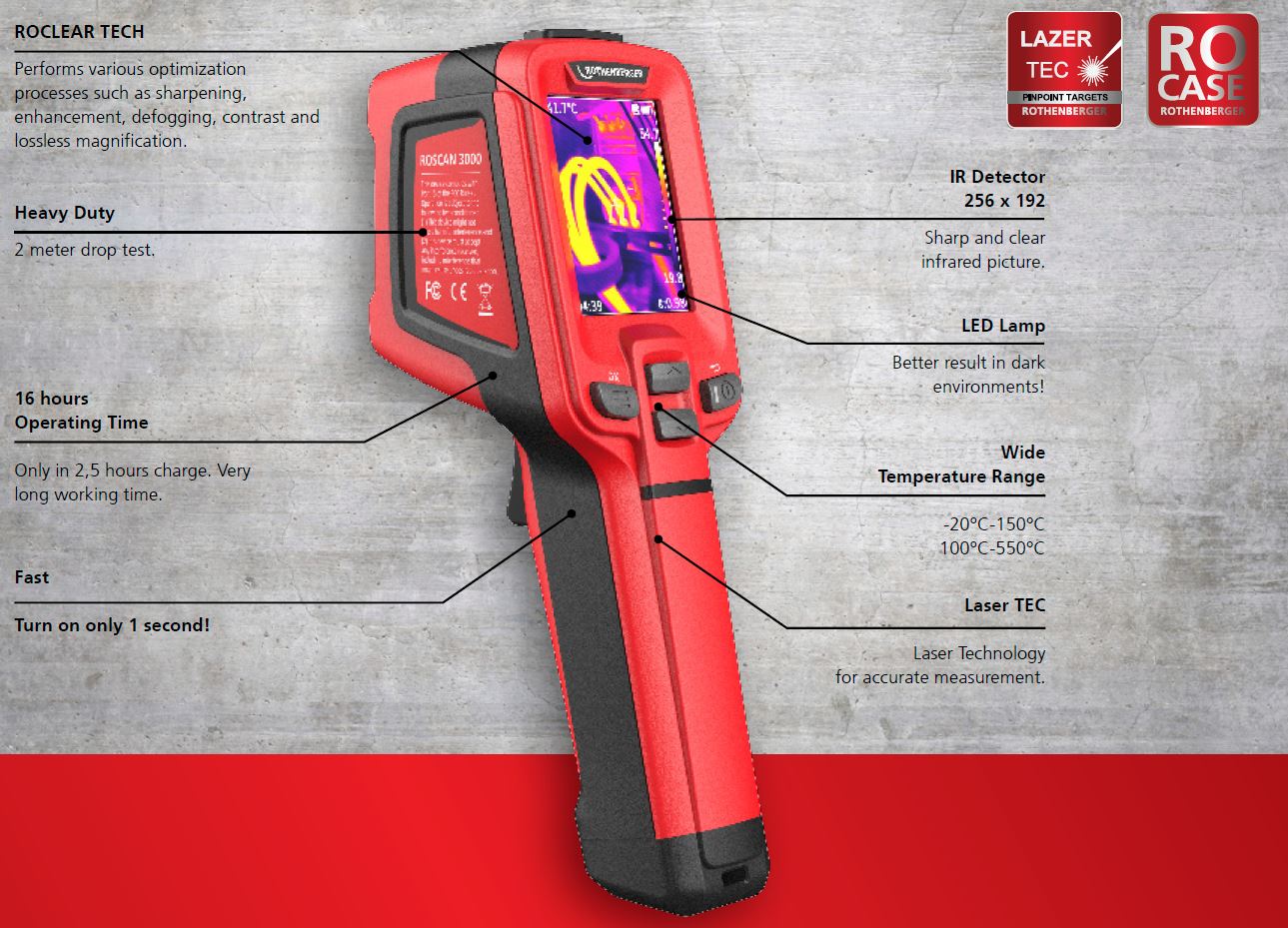

New ROCLEAN Picture Technology composite image enhancement technology, can provide you with detailed infrared thermal imaging and dual-light fusion images to help you find potential faults more quickly!

FEATURES
  • Water leak detection.
  • Facilities Maintenance.
  • Electrical Application.
  • HVAC Inspection.
  • Vehicle Engine.
  • Inspection of heating systems.
  • Solar Panels.





Additional information

IR Image & Optical

‏‏‎ ‎

IR Resolution

256 x 192 @ 12µm

Detector Type

VOX / 7.5-14 μm

Frame Rate

25 Hz

Thermal Sensitivity / NETD

45 mk

Field Of View (FOV)

56° x 48°

Spatial Resolution (IFOV)

3.75 mrad

Focus

Focus-free

Visible Camera

‏‏‎ ‎

Visible Camera Resolution

2 mega pixel

Focal Length

0.3 – 5m, Focus-free

Flashlight

Yes

Image Display

‏‏‎ ‎

Display

2.4 inch, LCD display

Display Resolution

320 x 240

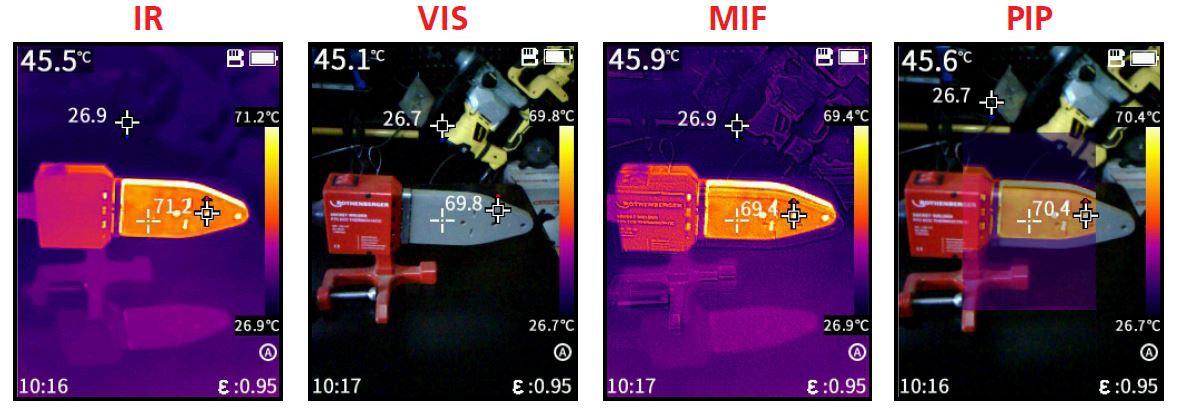

Image Mode

IR/Visible/Picture-in-picture/MIF

Color Palettes

6:White Hot, Iron Red, Hot Iron, Arctic, Rainbow 1, Rainbow 2

Temperature Measurement

‏‏‎ ‎

Temperature Range

-20°C-150°C, 100°C-550°C (Auto switching)

Accuracy

±2°C or ±2%, whichever is greater

(target temp 20°C, ambient temp is 5°C -30°C)

Measurement Spot

Center spot

Measurement Area

Fixed, large, medium and small (incl. max & min temp)

Auto Hot & Cold Spot Tracking Alarm

Yes

Alarm

Full Screen Max & Min Spot Alarm

Image Storage

‏‏‎ ‎

Storage Media

TF card (Standard 16G, up to 32G)

IR Image Format

Full Radiometric (JPG) (256X192)

Visible Image

Yes, 320 x 240

Connections & Communications

‏‏‎USB – TYPE-C, TF Card slot
Laser – Yes
Tripod interface – Yes
LED Lamp – Yes
Mobile APP – Yes

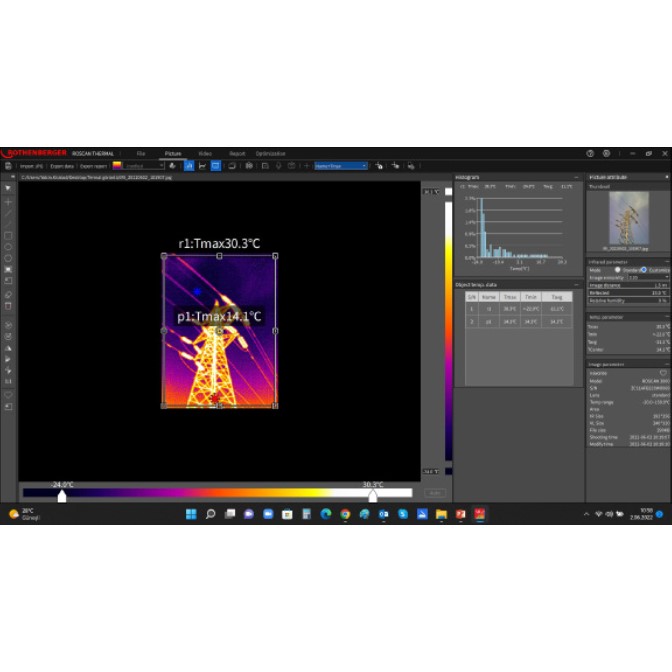

PC IR Analysis Software – Yes

Power System

‏‏‎ ‎

Battery Type

Rechargeable Li ion battery

Battery Operating Time

>16 hours

Charging Time

Internal charge, ≤2.5 hours

Environmental Parameters

‏‏‎ ‎

Operating Temperature

-15°C – 50°C

Storage Temperature

-40°C – 70°C

Encapsulation

IP54, 2-meter drop test

Certification

CE/ROHS/FCC/PSC/KC/UN38.3/IP54

Weight

Approx. 375g

Size

133.05 x 87.31 x 24.1 mm
