FLUKE PTi120 Pocket Thermal Camera 9HZ 120×90

3.5" LCD | -20 °C TO 400 °C | 7.6 mRad

R27,570.00

FloatOr as low as R6,892.50 / month interest-free, using your existing credit card. For orders over R3,000.00.How it works

SKU FLK5074148

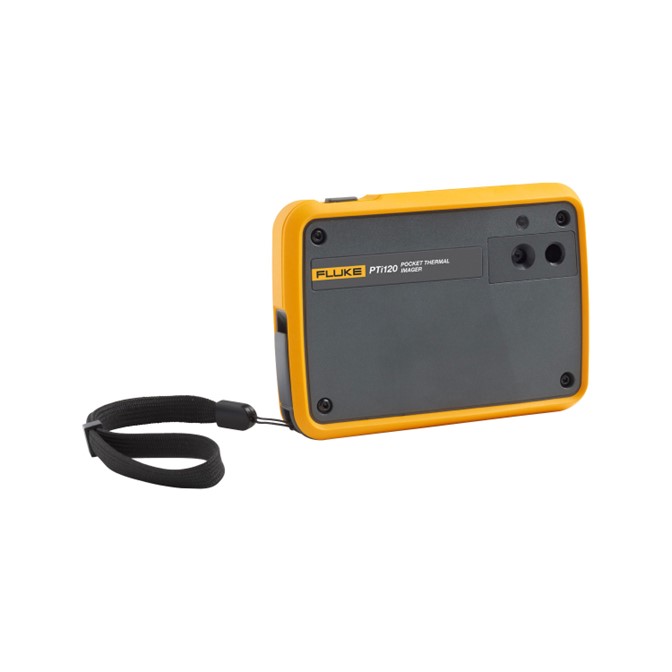

The Fluke PTi120 Pocket Thermal Camera puts the power to minimize downtime in everyone’s hands. The first line of defence for easy troubleshooting. Stop fighting fires on the job, start preventing them. Now enhanced infrared inspections are right in your pocket for quick temperature scans of electrical equipment and machinery as well as other assets. Review the Fluke PTi120 data sheet for all technical specifications.

We offer free nationwide delivery for all orders over R1500.

Any order under R1500 will be charged R175 for delivery

OZOW – Instant EFT: lightning-fast bank-to-bank payments.

Peach Payments – Checkout via Credit/Debit Card or Mobicred.

Bank Transfer – Manually transfer funds into our account.

Mobicred – Finance your purchase entirely or partially up to a maximum of R50,000. Apply Here

Float – For orders over R3000. Up to 4 interest-free installments, using your existing credit card.

In stock with supplier: delivery in 2-4 working days

Description



The bigger the problem, the faster you need to solve it.

The Fluke PTi120 Pocket Thermal Camera puts the power to minimize downtime in everyone’s hands. The first line of defence for easy troubleshooting. Stop fighting fires on the job, start preventing them. Now enhanced infrared inspections are right in your pocket for quick temperature scans of electrical equipment and machinery as well as other assets.

With Fluke Connect Asset Tagging you eliminate the tedium of sorting and organizing your infrared images. By simply scanning your asset’s QR code or barcode, your infrared image and all of your date and time stamped information will be stored in your predefined folders. Send via WiFi or automatically upload once you connect to the network or computer via USB. Review the Fluke PTi120 data sheet for all technical specifications.





FEATURES

  • Automatic organization and filing of thermal images as a result of the Fluke Connect Asset Tagging feature.
  • A fully radiometric thermal imager gives you measurement data to the pixel with 120 x 90 infrared resolution (10,800 pixels).
  • Locate problems more easily due to the IR-Fusion™ setting which blends a visible light image with an infrared image.
  • -20 °C to +400 °C temperature measurement range.
  • Six colour palettes to choose from.
  • Increased visibility and easy troubleshooting due to the 3.5” LCD touchscreen display.
  • IP 54 enclosure rating which is able to withstand drops up to 1 meter.

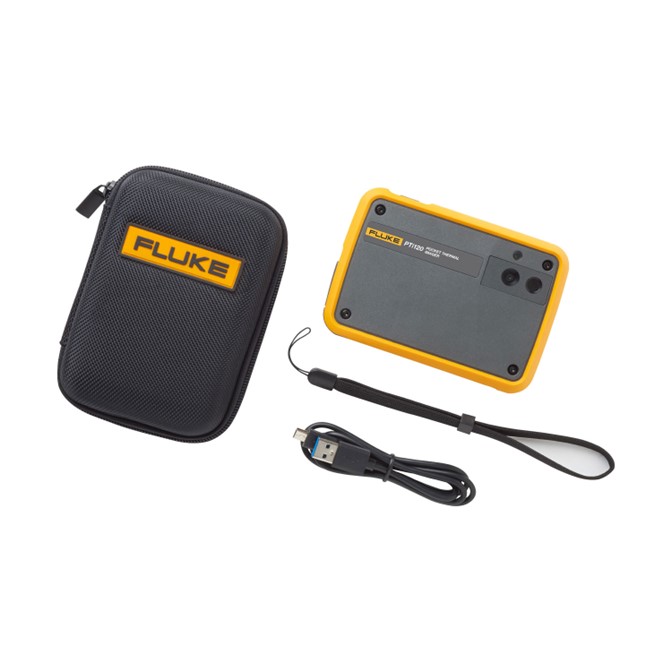

SET INCLUDES

  • Fluke PTi120 Pocket Thermal Camera (9 Hz).
  • Soft case.
  • Lanyard.
  • USB cable.



Additional information

Key Features

‎‎‎

IFOV (spatial resolution)

7.6 mRad

Infrared resolution

120 x 90 (10,800 pixels)

Field of view

50° H x 38° V

Distance to spot

130:1

Focus system

Fixed focus, minimum focus distance 22.8 cm

USB

Mini USB used to transfer image to PC

Wifi

Yes

Image quality

‎‎‎

IR-Fusion technology

Yes, adds the context of the visible details to your infrared image

AutoBlend mode

Continuous 0% to 100%

Touchscreen display

3.5’’ (landscape), 320 x 240 LCD

Rugged, ergonomic design

Yes

Thermal sensitivity (NETD)

60 mK

Frame rate

9 Hz

Data storage and image capture

‎‎‎

Memory

≥ 2GB internal flash memory

Image capture, review, save mechanism

One-handed image capture, review, and save capability

Image file formats

Non-radiometric (jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (jpeg) files

Software

Fluke Connect® desktop software—full analysis and reporting software with access to the Fluke Connect system

Export file formats with software

JPG, IS2

Measurement range

-20 °C ~ 400 °C

Battery

‎‎‎

Batteries (rechargable)

Internal rechargeable lithium ion battery

Battery life

≥ 2 hours continuous (without WiFi)

Battery charging time

≤ 1.5 hours

Battery charging system

Mini USB cord from product to PC

AC operation

With separate AC to USB adapter. Not included in box.

Power saving

Automatic Shutdown – 5, 10, 15 and 20 minutes or never

Temperature measurement

‎‎‎

Temperature measurement range (not calibrated below -10 °C)

-20 °C to 400 °C

Accuracy

Target temp at or over 0 °C: Accuracy: ± 2 °C or ± 2%

On-screen emissivity correction

Yes

On-screen reflected background temperature compensation

Yes

Color palettes

Standard palettes – Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale

General specifications

‎‎‎

Infrared spectral band

8 μm to 14 μm (long wave)

Operating temperature

-10 °C to +50 °C (14 °F to 122 °F)

Storage temperature

-40 °C to +70 °C (-40 °F to 158 °F)

Relative humidity

95% non-condensing

Center-point temperature

Yes

Spot temperature

Hot and cold spot markers

Safety

EN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery)

Electromagnetic compatibility

EN301 489-1 V2.1.1 EN301489-17 V3.1.1

US FCC

CFR, Part 15C

Vibration and shock

2G, IEC 68-2-6 and 25G, IEC 68-2-29

Drop

1 meter

Size (H x W x L)

8.9 cm x 12.7 cm x 2.5 cm

Weight (battery included)

0.233 Kg

Enclosure rating

IP54

Warranty

Two-years

Supported languages

Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish.

Scope of Delivery

  • Fluke PTi120 Pocket Thermal Camera (9 Hz).
  • Soft case.
  • Lanyard.
  • USB cable.

Product Warranty

The Fluke PTi120 carries a 2-year limited warranty against manufacture defects. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.

Top Dog Tool Shop is here to support all your after-sale needs. Should a warranty claim occur, Top Dog Tool Shop will facilitate the claim but the approval or non-approval there-of is entirely at the discretion of the Importer/Manufacturer.

Safety Information

Safety Information

A Warning identifies hazardous conditions and procedures that are dangerous to the user. To prevent possible electrical shock, fire, or personal injury and for safe operation of the Product:

  • Read all safety information before you use the Product.
  • Carefully read all instructions.
  • Do not alter the Product and use only as specified, or the protection supplied by the Product can be compromised.
  • Do not use the Product if it operates incorrectly.
  • Do not use the Product if it is altered or damaged.
  • Disable the Product if it is damaged.
  • Use only Fluke-approved power adapters to charge the battery.
  • If the Product gets hot, disconnect the battery charger and move the Product to a cool, non-flammable location.
  • Have an approved technician repair the Product.

For additional safety information, visit the Fluke Safety Resource Center.
