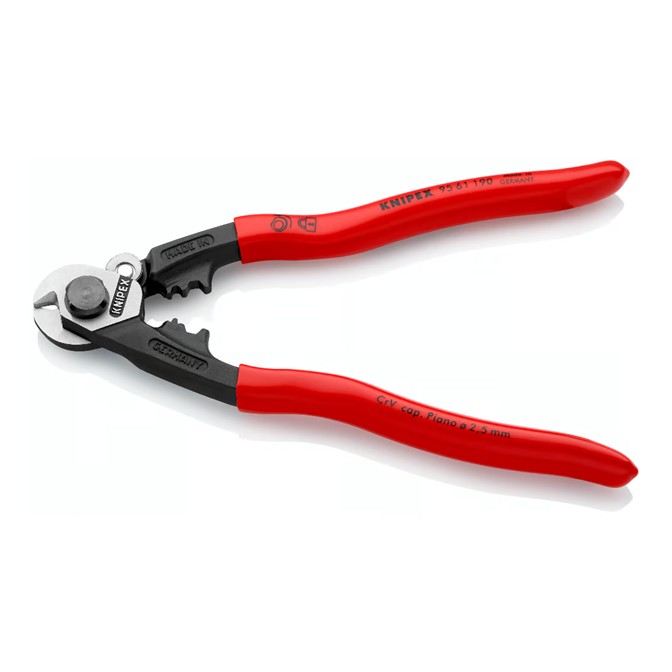

KNIPEX Wire Rope Cutter Pliers PVC | 190mm

Description

Professionally cut all wire ropes and crimped end sleeves and end caps.

The Knipex Wire Rope Cutter Pliers 9561190SB is a high-performance tool for repairs, structural steelwork, trade fair construction etc.

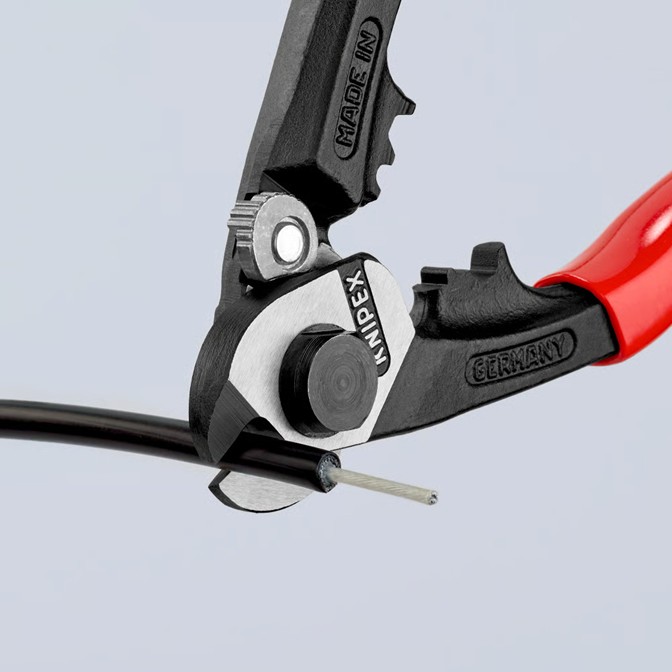

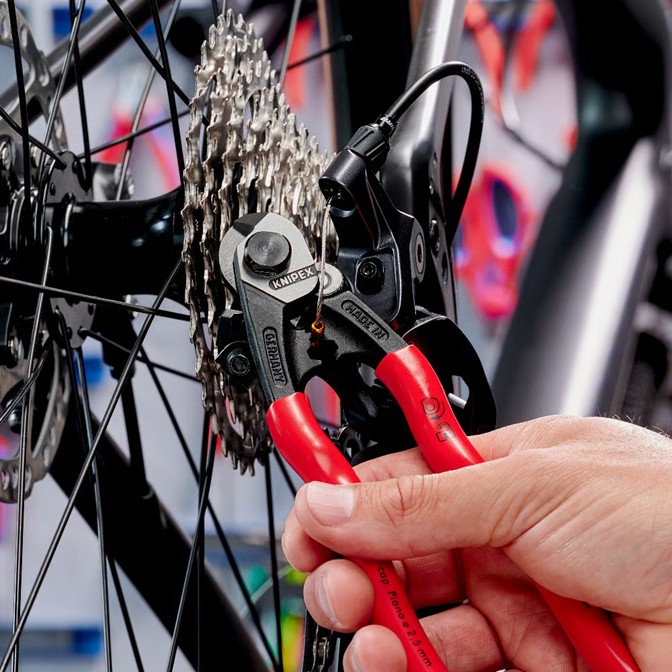

Typically, Knipex wire rope cutters are used in various applications. Such as replicating broken clutch cables for classic cars when original parts are unavailable, and producing new handbrake cables for truck trailers from meter-long cable stock. These cutters prove ideal for these and many other tasks, thanks to their impressive cutting capacities of up to 7 mm for stranded Cu cable and 5 mm for wire rope, making them suitable for installation work and workshop settings.

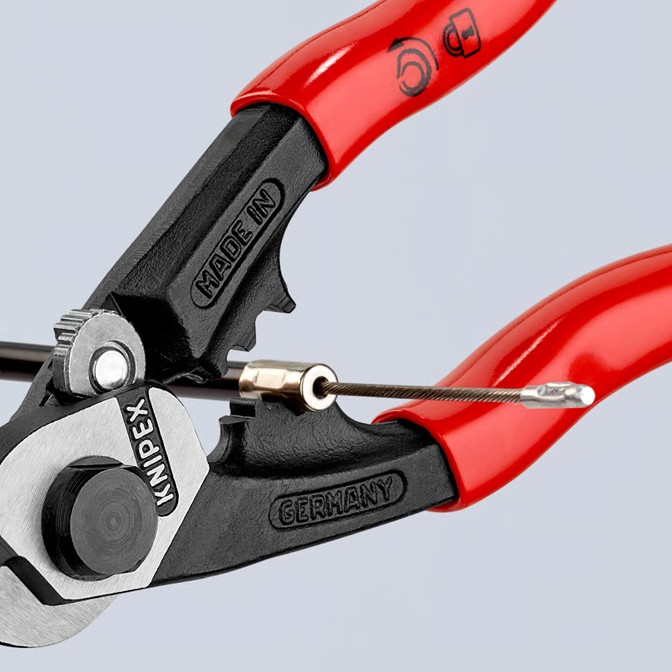

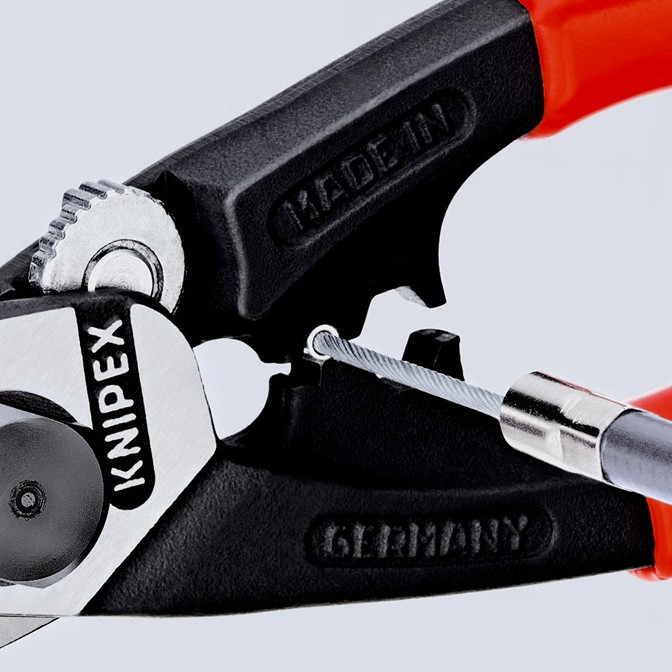

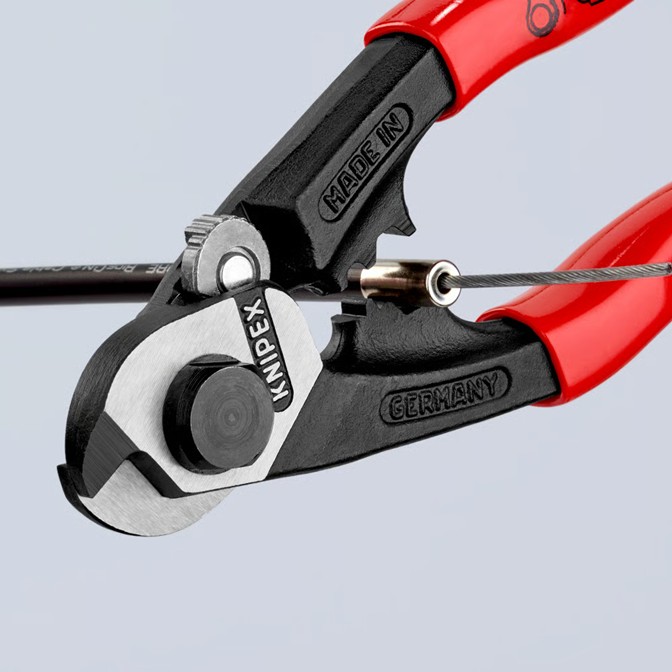

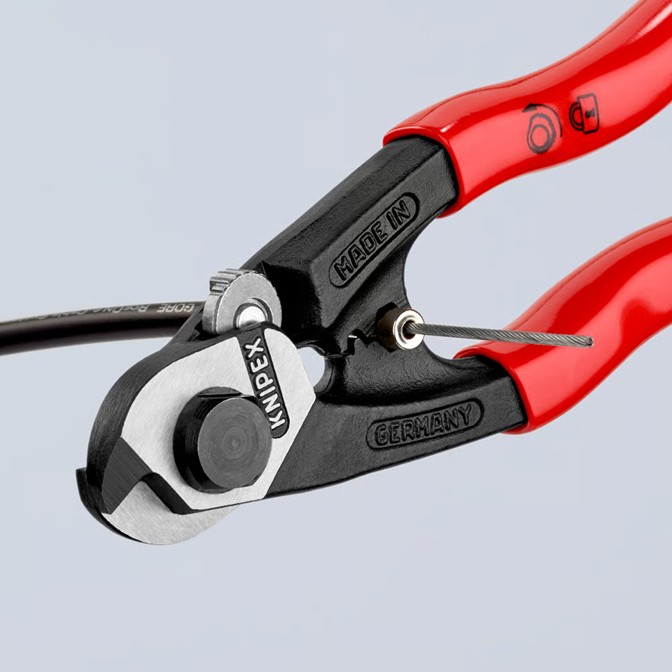

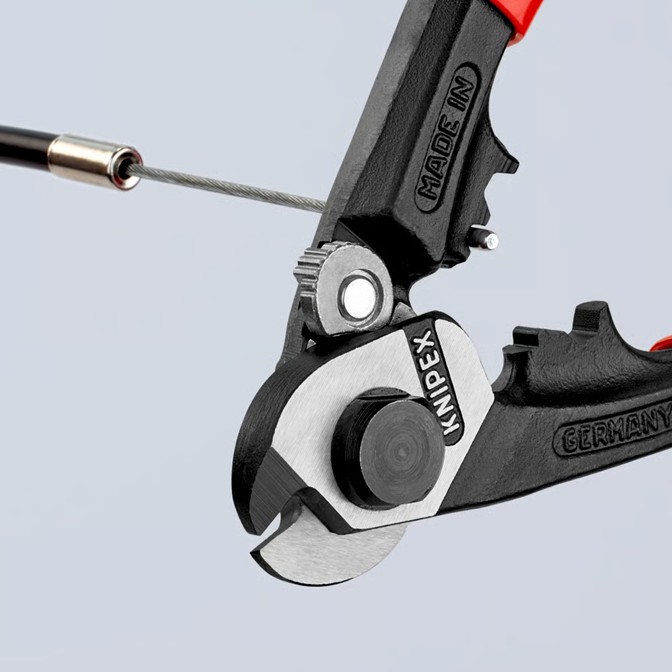

Moreover, these wire rope cutters offer two valuable additional functions that replace separate tools. Specifically, the accurately shaped crimping dies enable direct assembly of Bowden cables and sleeves after cutting, allowing users to press end caps onto cables and end sleeves onto Bowden sleeves. This feature enhances safety by preventing injuries from exposed cable ends.

Furthermore, the Knipex wire rope cutters are designed with user comfort in mind. Featuring an adjustable bolted joint, opening spring, and pawl. The space-saving opening spring automatically opens the pliers after each cut, saving time and effort. Meanwhile, the pawl secures the cutters during transport, preventing accidental opening. Overall, these features combine to provide a convenient and efficient cutting experience.

FEATURES

• Wire rope cutters with two crimping dies for end sleeves on Bowden sleeves and end caps for Bowden cables.
• Comfortable work due to manageable, slim design and inset opening spring.

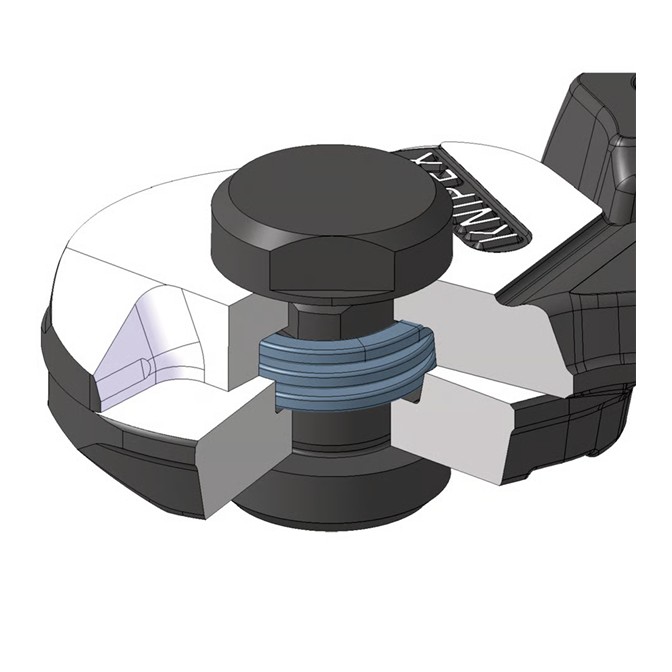

• Screwed joint for accurate blade guidance, adjustable.
• Energy-saving work due to very high transmission ratio.
• Cutting edge hardness approx. 64 HRC.

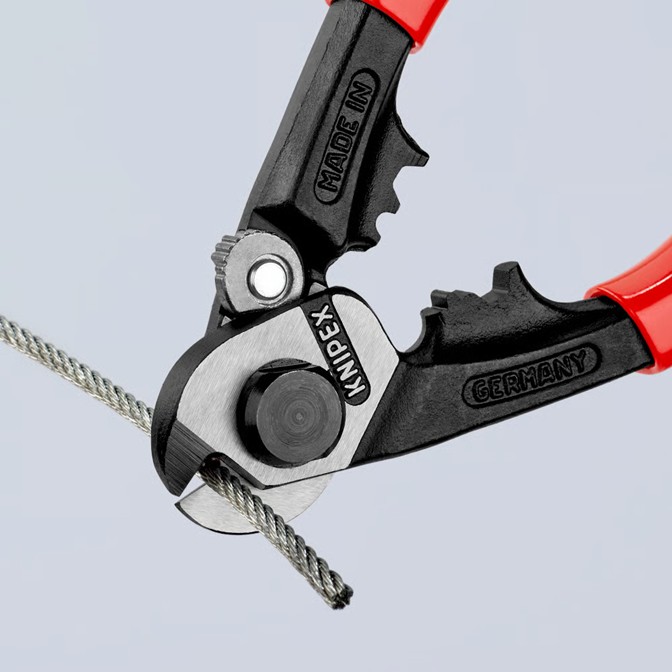

• Cutting capacities: Cu cable, stranded up to Ø 7 mm; medium-hard wire up to Ø 4 mm, hard wire rope up to Ø 5 mm; piano wire up to Ø 2.5 mm.
• Chrome vanadium high-performance steel, forged, oil-hardened.
• Handles coated with non-slip plastic.
• Weight 314 g.
• Length 190 mm.

Knipex quality – Made in Germany

Professional users expect a tool quality that permits simple and safe work and which will also last for several years of hard use. We therefore forge our tools from quality materials, machine them with great precision on up-to-date machinery, and harden them carefully using repeated heat treatment. More than 130 years of specialist pliers expertise is in every pair of Knipex pliers.
