METABO MAG 32 Magnetic Core Drill

Description

The METABO MAG 32 Magnetic Core Drill has a large stroke, making it suitable for the use of core drills, spiral drills and countersinks.

Magnetic base with high holding power permits working on vertical surfaces and overhead.
Robust Metabo marathon motor with internal wiring for long service life.
Integrated coolant container for easy-to-dose internal cooling of the core drill.
Bright LED light for easy alignment in poor light conditions.
Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact.
The protective circuit starts the motor only if the magnet is activated.
Restart protection: prevents unintentional start-up after power supply interruption.
Lockable slide for comfortable tool change.
Handle for easy carrying and lifting.
Resistant mains cable (5 m) with rubber shroud.

Rated input power	1000 W
Output power	520 W
Max. drill-Ø with core drill	32 mm / 1 1/4 "
Max. drill-Ø with spiral drill	13 mm / 1/2 "
Maximum drilling depth	50 mm / 2 "
No-load speed	700 rpm
Revolutions at rated load	450 rpm
Bit retainer	Weldon shaft 19 mm (3/4")
Weight	11.9 kg / 26.2 lbs
Cable length	5 m / 16 ft
Torque	50 Nm / 443 in-lbs
Max. depth of feed	160 mm / 6 5/16 "
Max. magnetic holding force	12250 N

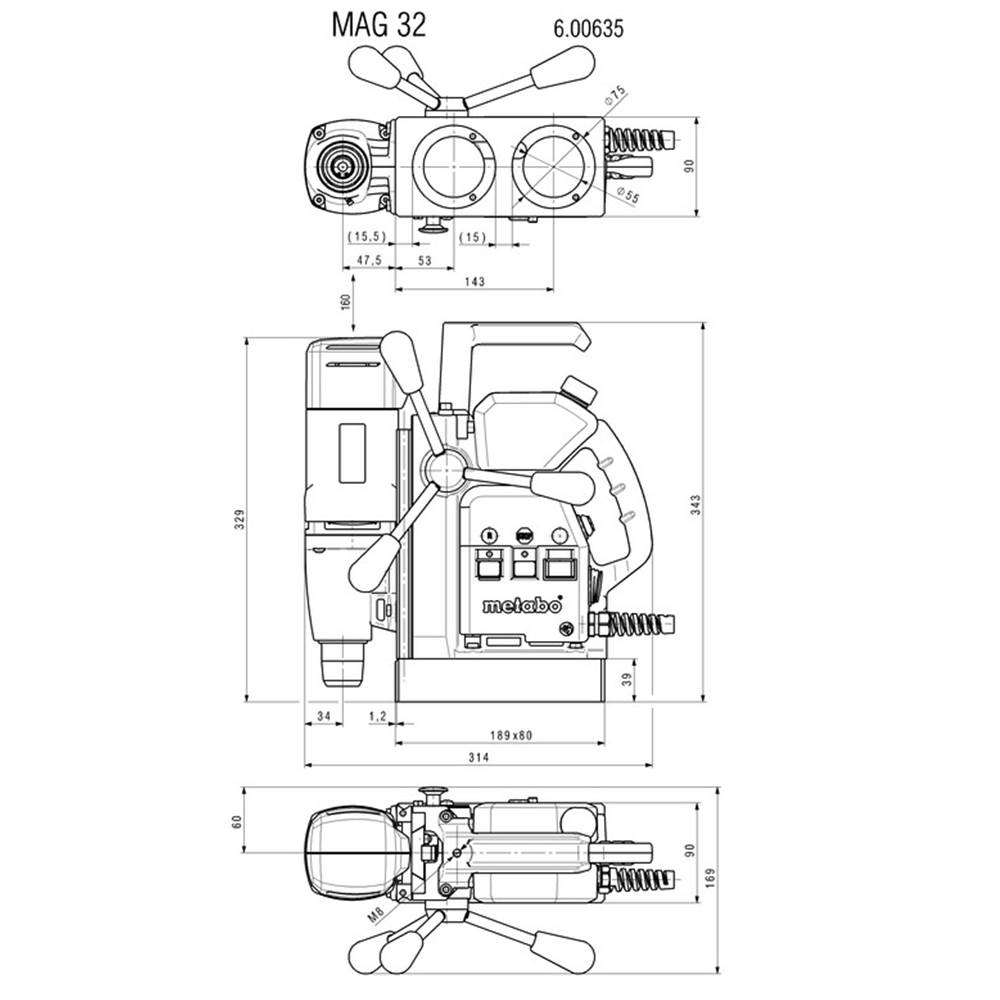

Dimensions of the magnet base	90 x 189 mm / 3 9/16 x 7 1/2 "
Height carriage lowest position	343 mm / 13 1/2 "
Height carriage topmost position	490 mm / 19 9/32 "
Vibration \| Drilling in metal	2.5 m/s²
Vibration \| Uncertainty of measurement K	1.5 m/s²
Noise Emission \| Sound pressure level	85 dB(A)
Noise Emission \| Sound power level (LwA)	98 dB(A)
Noise Emission \| Uncertainty of measurement K	3 dB(A)
