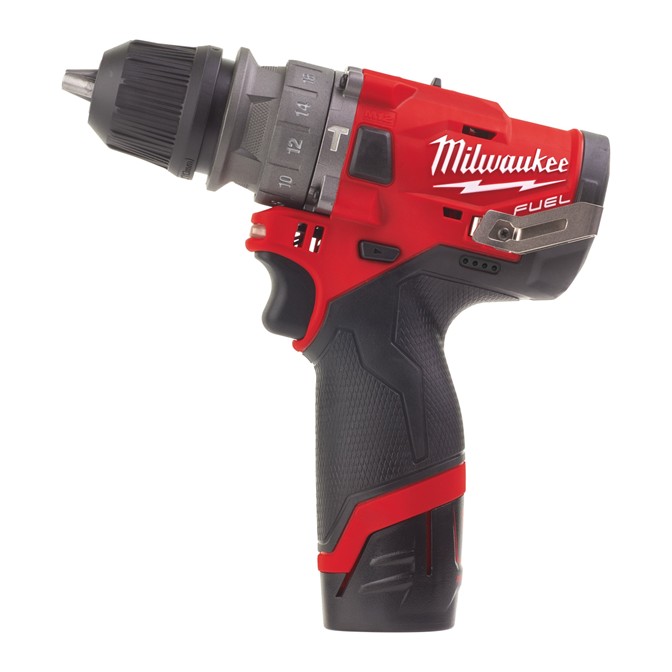

MILWAUKEE M12 FUEL Sub Compact Percussion Drill Set 6-in-1

Description

6-in-1 Versatility. Compact FUEL™ Power.

The MILWAUKEE M12 FUEL Sub Compact Percussion Drill Set 6-in-1 delivers a versatile drilling and fastening solution in a compact package. Its removable chuck system provides multiple head configurations, including a 13 mm keyless chuck, right-angle ¼” hex drive and offset ¼” hex drive, allowing the tool to adapt quickly to different applications. The POWERSTATE™ brushless motor delivers up to 44 Nm of torque, while the compact design and full-metal planetary gearbox provide the performance and durability needed for demanding work.

FEATURES

High-performance 6-in-1 percussion drill system provides versatility across multiple applications.

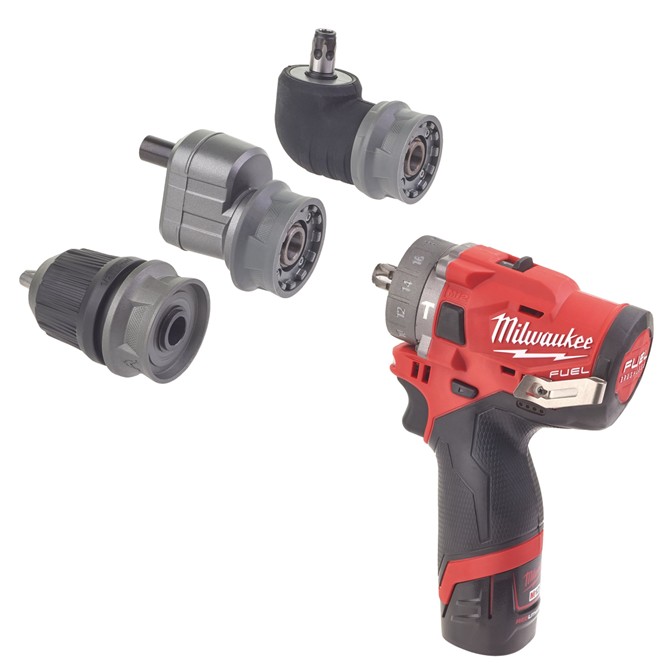

Removable chuck system with three interchangeable heads allows quick configuration changes.
POWERSTATE™ brushless motor delivers up to 44 Nm of torque.
13 mm keyless chuck provides a versatile drilling interface.

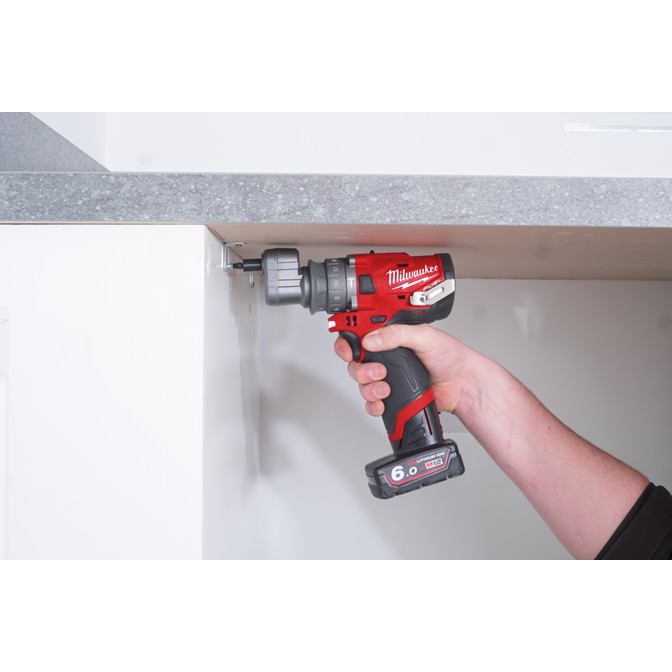

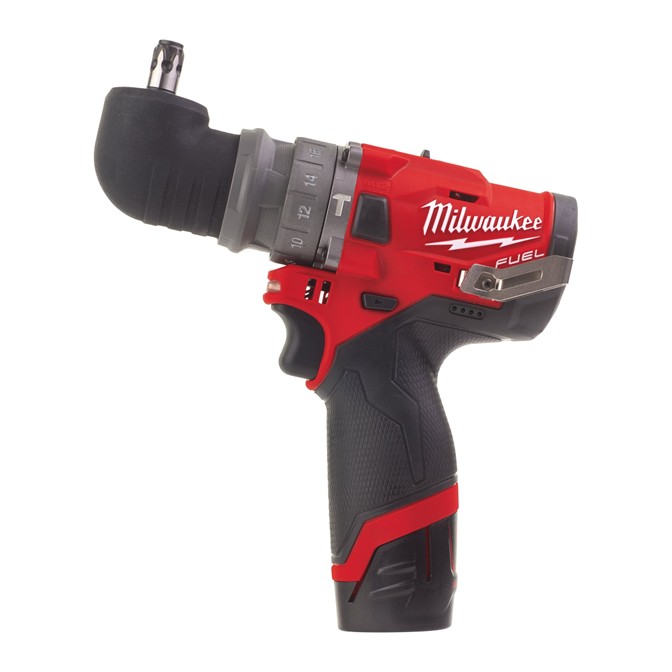

Full-metal right-angle ¼” hex drive head for access in confined spaces.

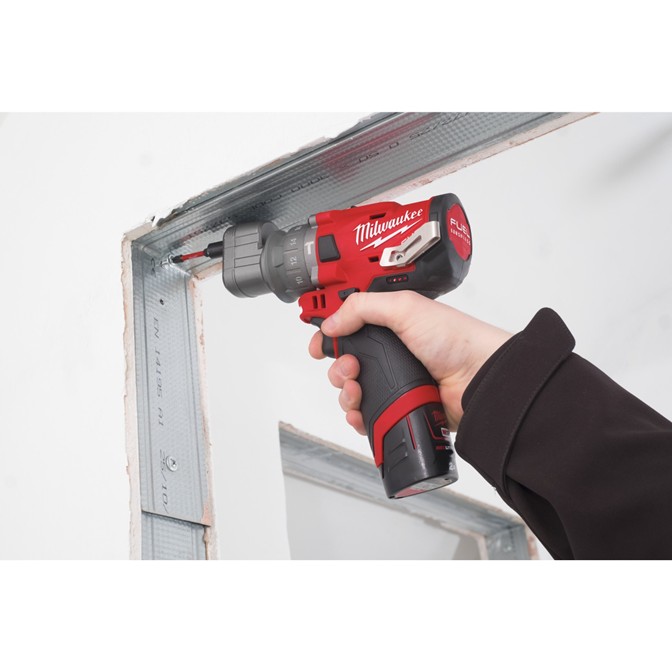

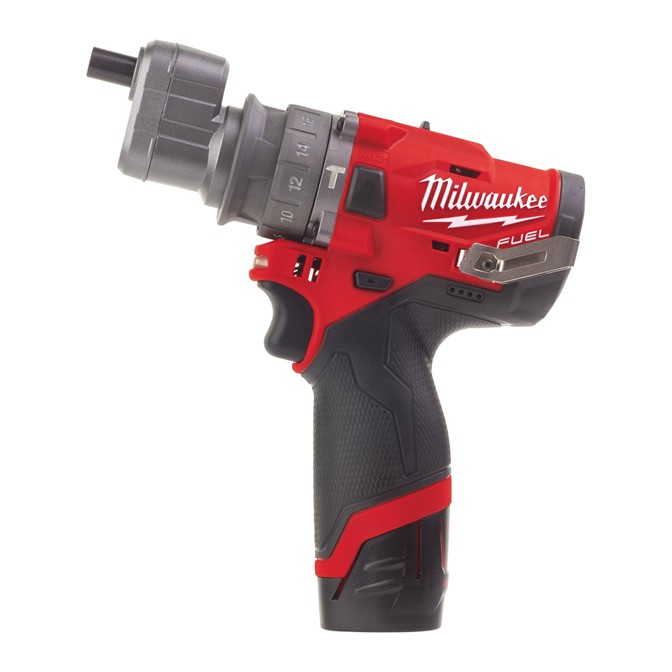

Full-metal offset ¼” hex drive head for improved access around obstructions.

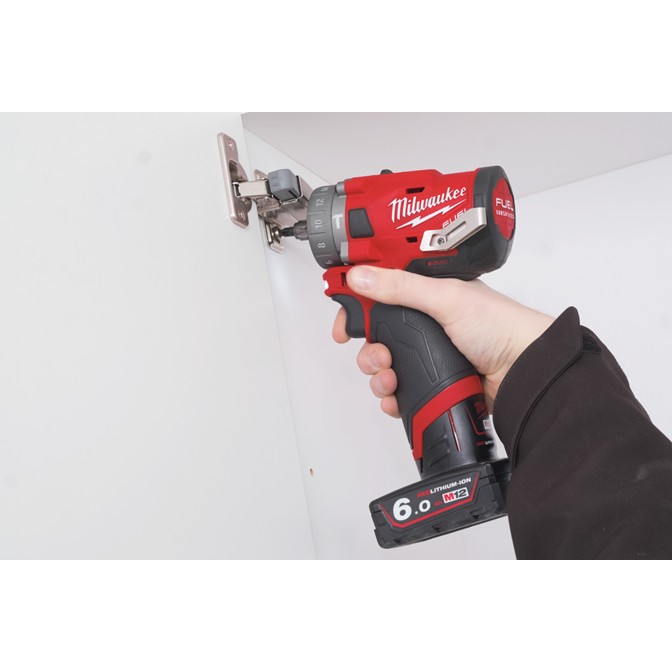

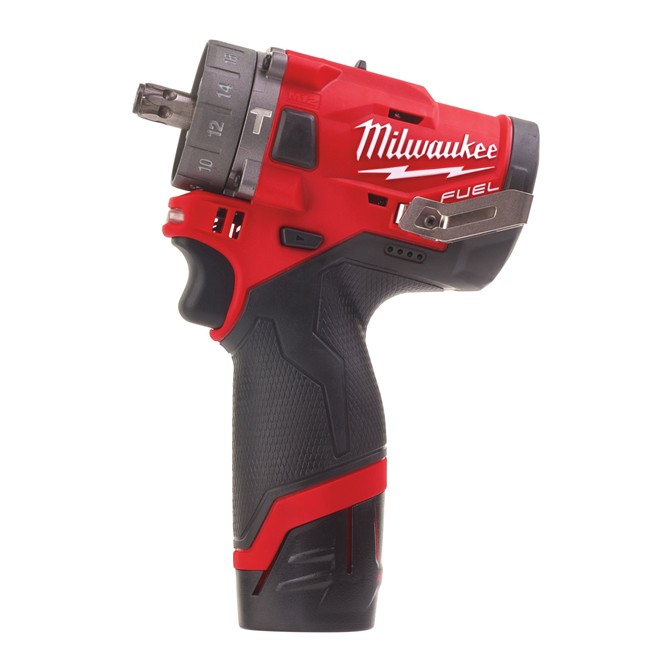

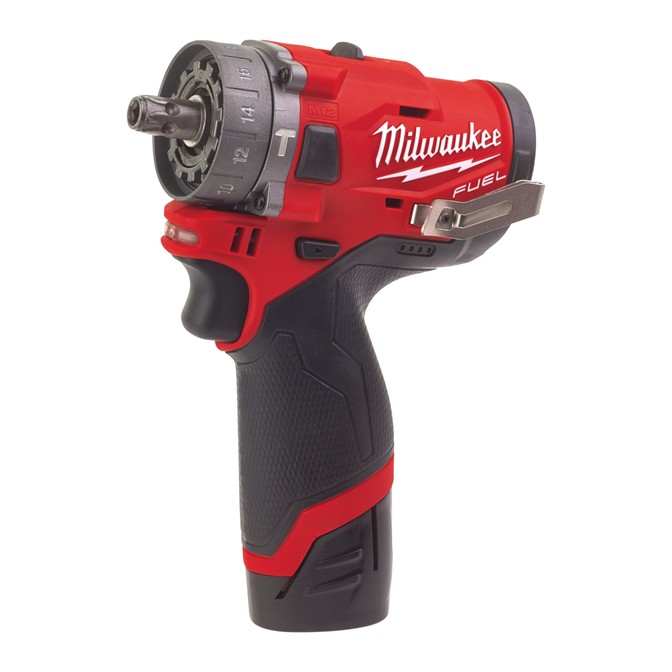

¼” hex drive behind the chuck can reduce the drill length to 138 mm when required.
Full-metal planetary gearbox provides increased durability.
REDLINK PLUS™ provides digital overload protection for the tool and battery while optimising performance under load.
REDLITHIUM™ battery technology provides fade-free performance and extended runtime.
LED light illuminates the workspace.
Compatible with all MILWAUKEE® M12™ battery packs.

Additional information

Article Number	4933464138
Model Number	M12 FPDXKIT-202X
Voltage	12V
Battery included	2x M12 B2
Charger included	C12 C
Battery pack capacity	2.0 Ah
Chuck capacity	13 mm
Max Drilling Capacity	Masonry – 13 mm Steel – 13 mm Wood – 35 mm
Wood screws To	8 mm
Max. percussion rate	0 – 25500 bpm
Max. torque	37 Nm
No load speed	Gear 1 – 0 – 450 rpm Gear 2 – 0 – 1,700 rpm
Speed settings	2
Weight with battery pack	1.2 kg (M12 B2)
Noise	Sound power level (Lwa)(dB(A)) – 100 Sound power level uncertainty (dB(A)) – 3 Sound pressure level (Lpa)(dB(A)) – 89 Sound pressure level uncertainty (dB(A)) – 3
Vibration	Vibration drilling into Metal [m, s²] – 1.92 Vibration drilling into metal uncertainty [m, s²] – 1.5 Vibration percussion drilling into concrete [m, s²] – 15.73 Vibration percussion drilling into concrete uncertainty [m, s²] – 1.5 Vibration screw driving (m/s²) – 0.86 Vibration screw driving uncertainty (m/s²) – 1.5
Kit included	2 x M12 B2 Battery packs, C12 C Charger, HD Box
Standard equipment	Removable chuck, offset attachment, right angle attachment
Supplied in	HD Box
EAN	4058546220839

Scope of Delivery

M12 FUEL™ sub compact percussion drill with removable chuck.
2x M12™ 2.0 Ah battery.
M12™ charger.
HD Box.
