Description

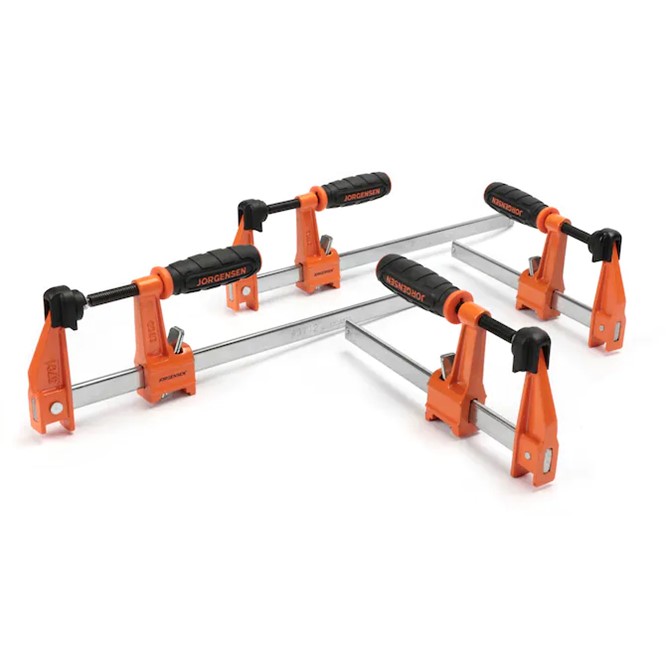

The Jorgensen medium duty steel bar clamp is our most popular clamp. They are used by do-it-yourself, hobbyist, carpenters, cabinet makers, woodworkers, metalworkers and professional trades people of all types.
It is a sliding head design: the sliding head is threaded to accommodate the screw with large easy grip handle and swivel pad.
All adjustments are made in the movable sliding head, making this style fast acting, easy to open and close and suitable for close quarters clamping.
You can easily move the sliding head up and down the bar. The 3/8 In. steel screw with easy grip handle and 3/4 In. diameter plated steel swivel can be tightened or loosened to meet your exact pressure needs.
The strong, light weight 1/4 In. x 3/4 In. steel bars are plated to be rust resistant.
The multiple-disc-clutch design consist of two hardened plated steel clutch disc and one spring which allows the sliding head to hold securely at any point along the bar.
FEATURES
- The iron castings have an orange baked enamel finish.
- Maximum reach is 2-1/2 inches from edge of bar to center line of screw.
- Maximum opening capacity are 6 inches and 12 inches.
- Maximum load limit is 600 lbs.
