METABO MAG 50 Magnetic Core Drill 1200W 50mm

Description

The METABO MAG 50 Magnetic Core Drill 1200W 50mm has a large stroke making it suitable for use with core drills, spiral drills and countersinks.

Magnetic base with high holding power permits working on vertical surfaces and overhead.
Robust Metabo marathon motor with internal wiring for long service life.
Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load.
Clockwise/anti-clockwise rotation with thread cutter.
Durable two-speed gearbox with oil bath lubrication for ideal speeds.
Integrated coolant container for easy-to-dose internal cooling of the core drill.
Bright LED light for easy alignment in poor light conditions.
Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact.
The protective circuit starts the motor only if the magnet is activated.
Overload protection: protects the motor from overheating.
Restart protection: prevents unintentional start-up after power supply interruption.
Lockable slide for comfortable tool change.
Handle for easy carrying and lifting.
Resistant mains cable (5 m) with rubber shroud.

Rated input power	1200 W
Output power	620 W
Max. drill-Ø with core drill	50 mm / 2 "
Max. drill-Ø with spiral drill	20 mm / 3/4 "
Maximum drilling depth	50 mm / 2 "
Thread cutting	M 16
No-load speed	100 – 250 / 200 – 450 rpm
Revolutions at rated load	250 / 450 rpm
Bit retainer	Morse taper MK 2 / Weldon shaft 19 mm (3/4")
Weight	12.7 kg / 28 lbs
Cable length	5 m / 16 ft
Torque	90 / 50 Nm // 797 / 443 in-lbs
Max. depth of feed	160 mm / 6 5/16 "
Max. magnetic holding force	12250 N

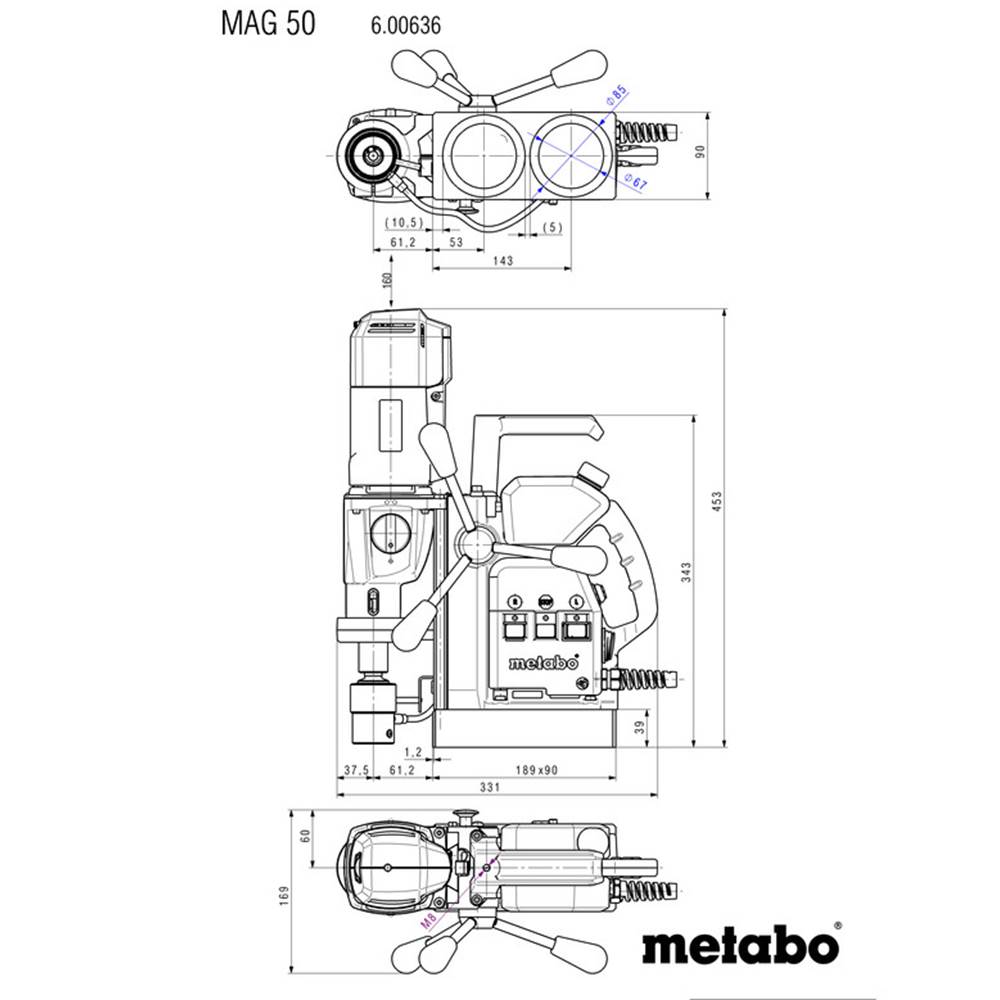

Dimensions of the magnet base	90 x 190 mm / 3 9/16 x 7 1/2 "
Height carriage lowest position	457 mm / 18 "
Height carriage topmost position	610 mm / 24 "
Vibration \| Drilling in metal	2.5 m/s²
Vibration \| Uncertainty of measurement K	1.5 m/s²
Noise Emission \| Sound pressure level	79 dB(A)
Noise Emission \| Sound power level (LwA)	92 dB(A)
Noise Emission \| Uncertainty of measurement K	3 dB(A)
